Model No: APS

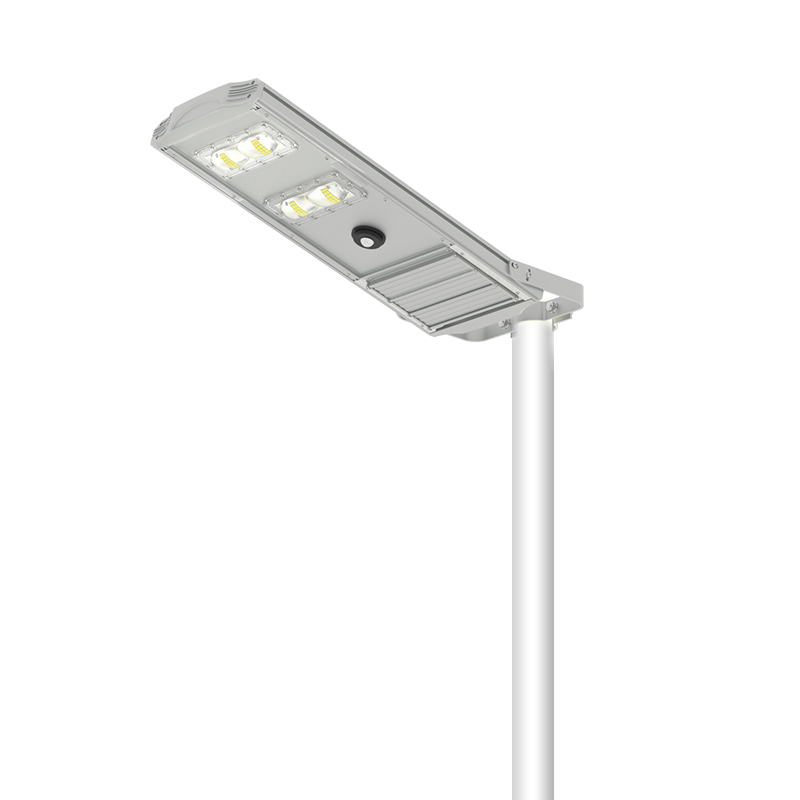

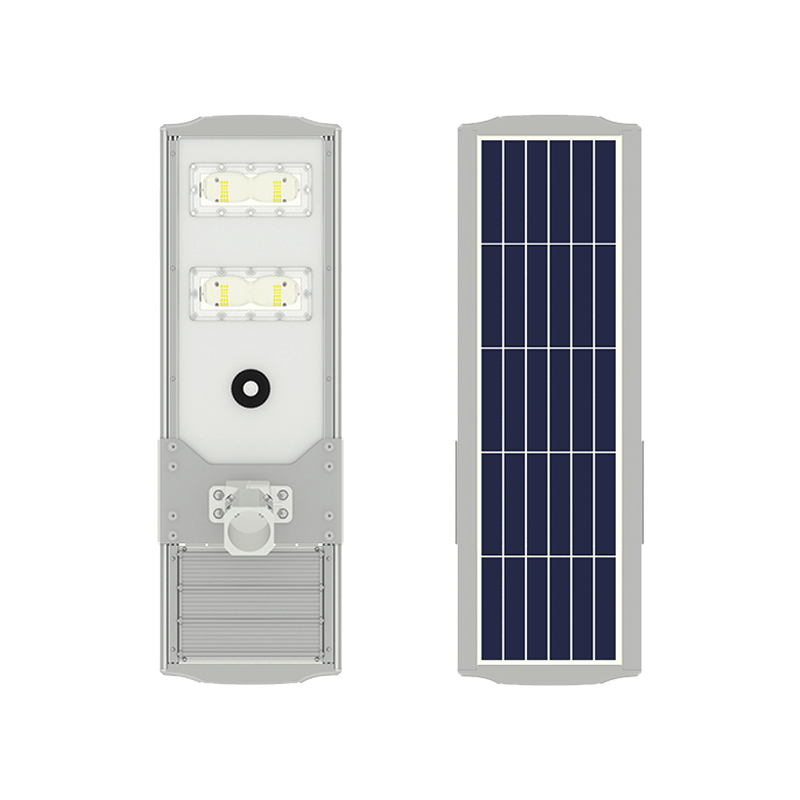

Apollo series all in one solar street light

High luminous efficiency led chip

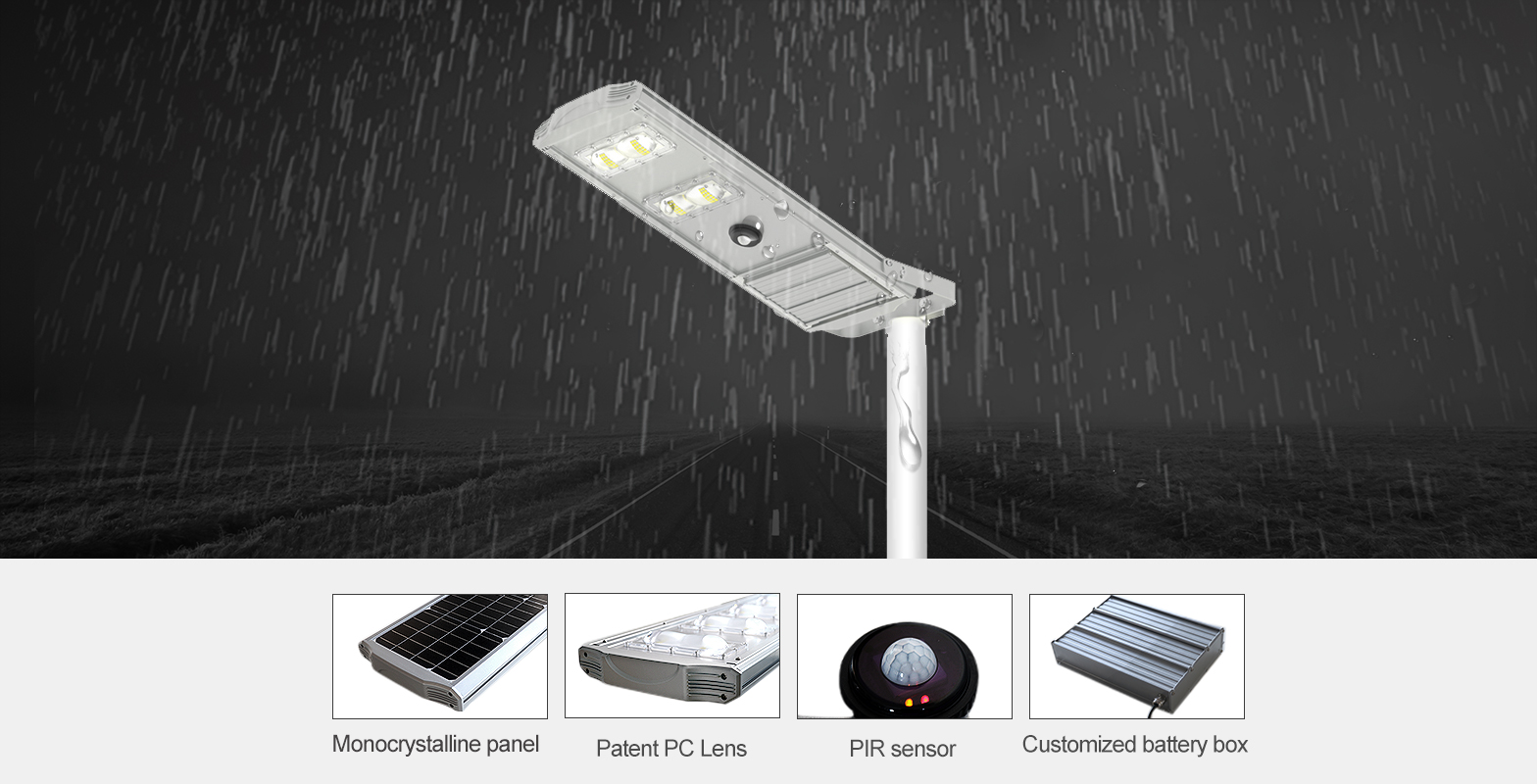

Die-casting aluminum and unique PC lens

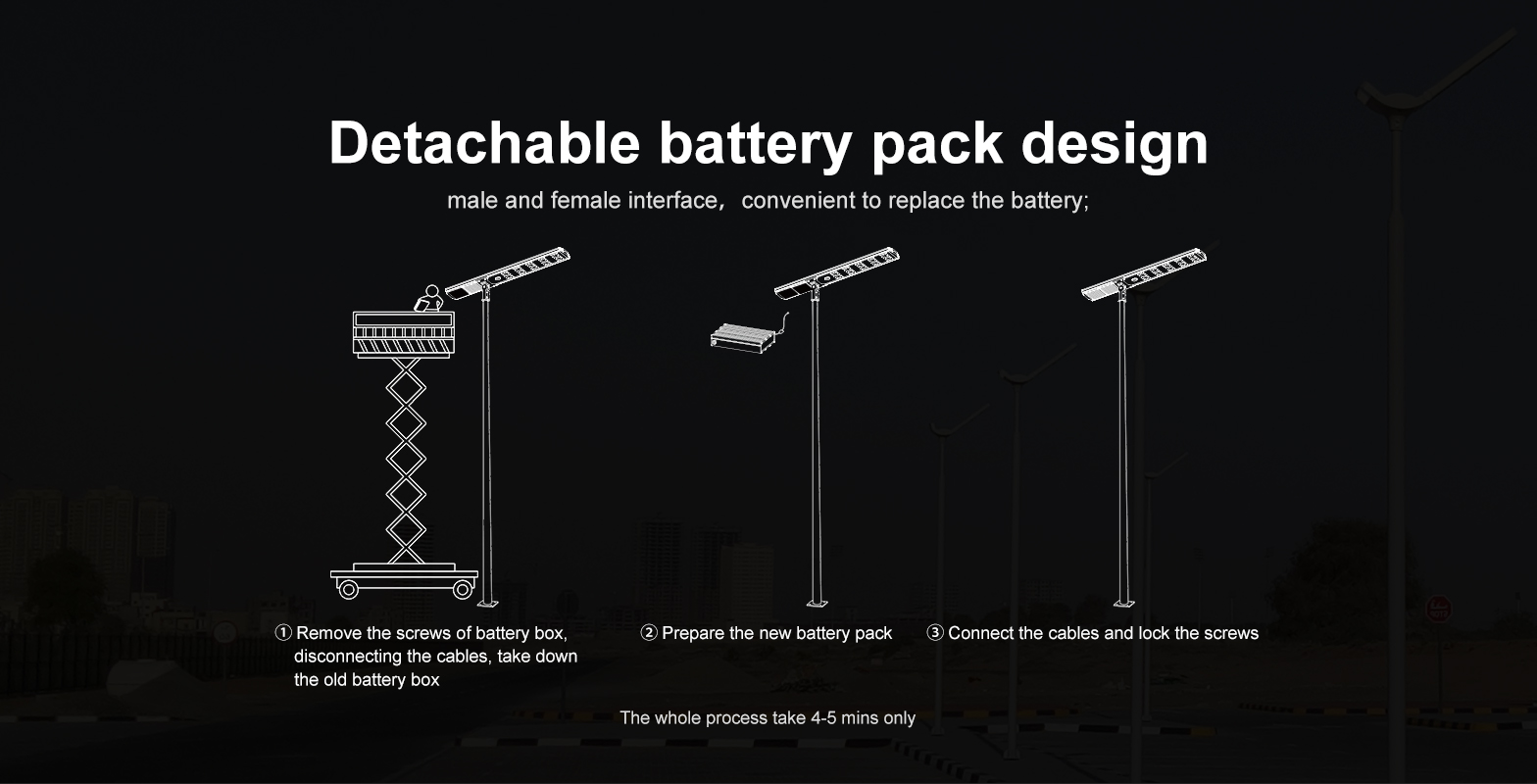

Detachable battery pack design, easy maintenance

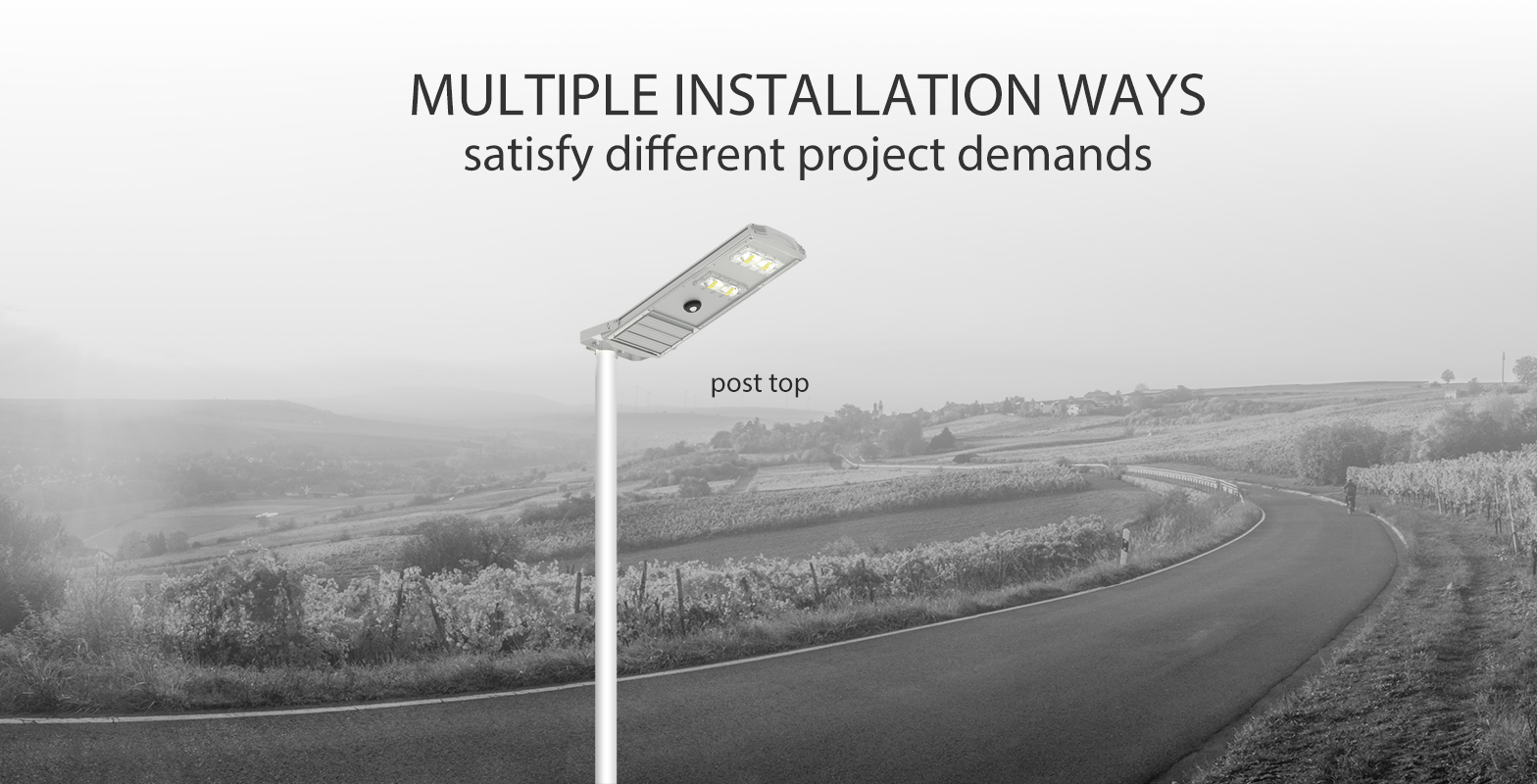

Multiple installation ways optional

IP66 waterproof, Montion sensor available

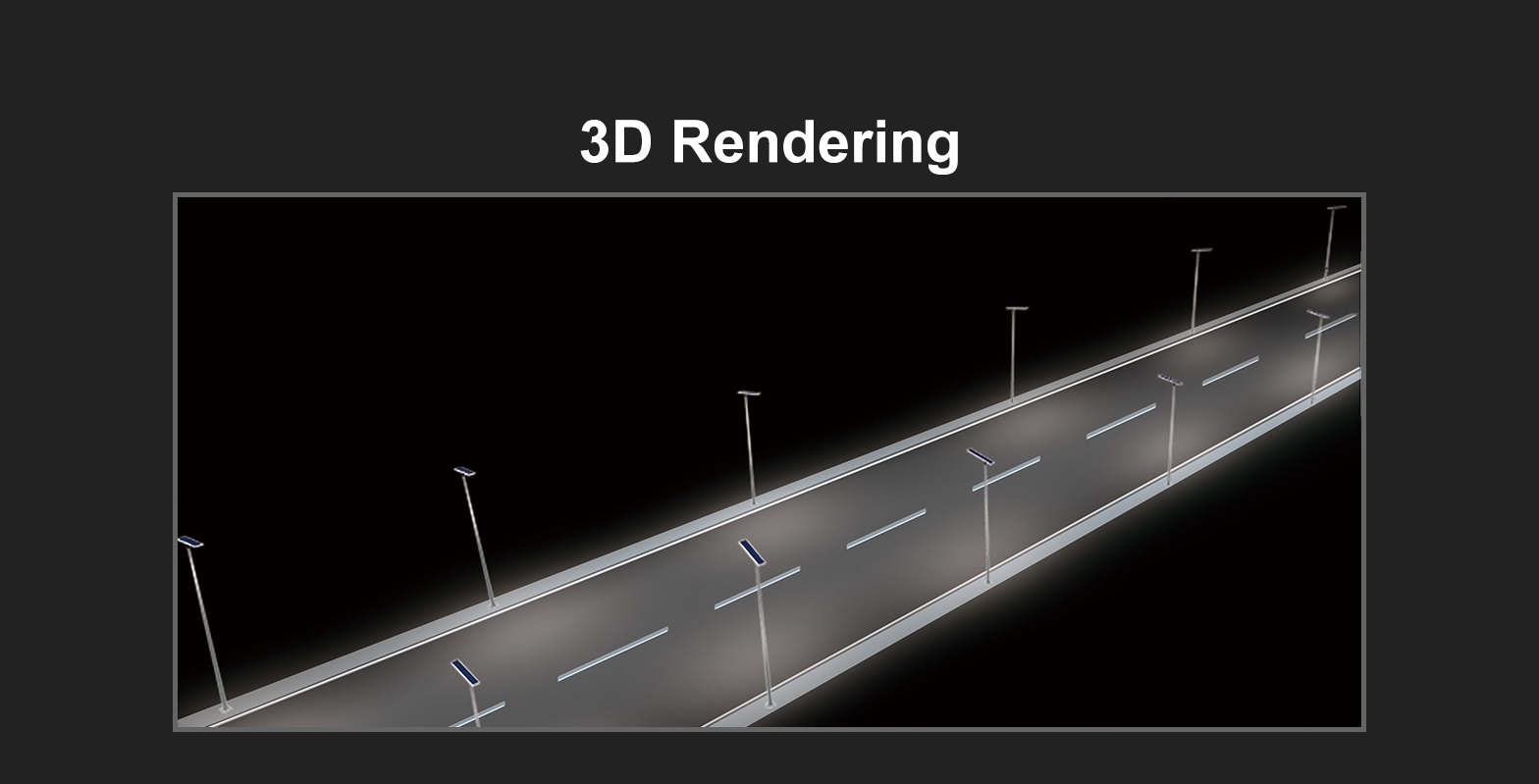

Suitable for roads with 1-2 lanes




Inquire >
Product details Product specificatons Download & Code



Model NoXSY-APS-2XSY-APS-3XSY-APS-4XSY-APS-5
Solar Panel30W40W50W60W
Battery(LiFePO4)153.6WH230.4WH384WH460.8WH
Luminous Flux3000lm5000lm6000lm8000lm
Led Chips06.png
Warranty3 years
Color Temp4000K-6500K

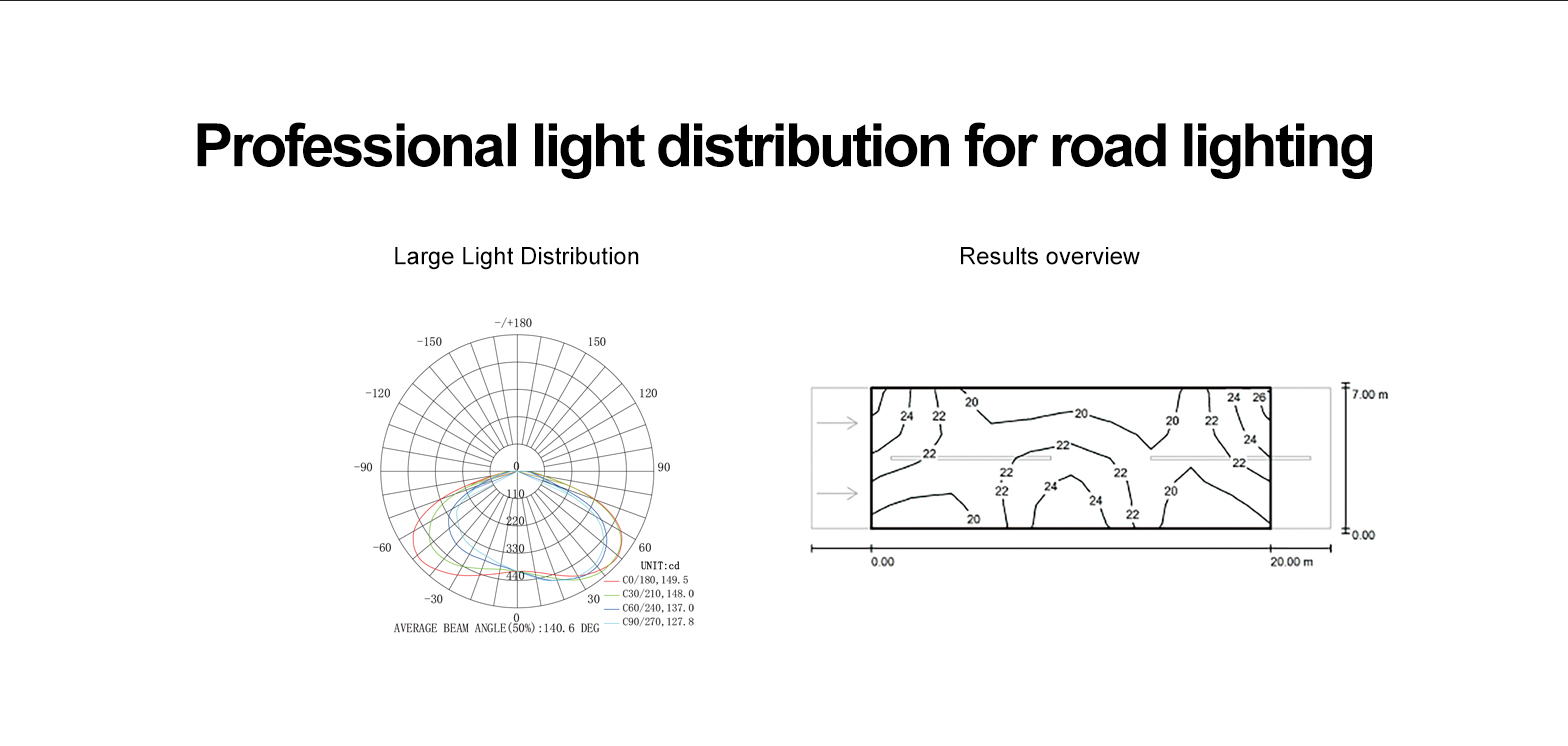

Beam AngleTYPE III
Lamp Angle0/15/30 degree vertically
PIR SensorYes(Optimum detecting range:6-8m)
Standard Working Mode

First 3 hours full brightness,last 9 hours in PIR sensor mode (60% brightness with people, 30% brightness without people)

Back Up Time3 nights
Working Temperature-20℃ to 60℃
Charging Time7-9hrs
Required Pole Size60 mm(top end)
IP/IK ClassIP66 /lK08
Lamp Body795×340×160mm1150×360×200mm1450×360×200mm1610×360×200mm
N.W(KGS)12.014.015.517.0
G.W(KGS)13.516.018.020.0
20GP598set352set264set212set
40GP1274set726set539set489set
40HQ1568set858set637set576set

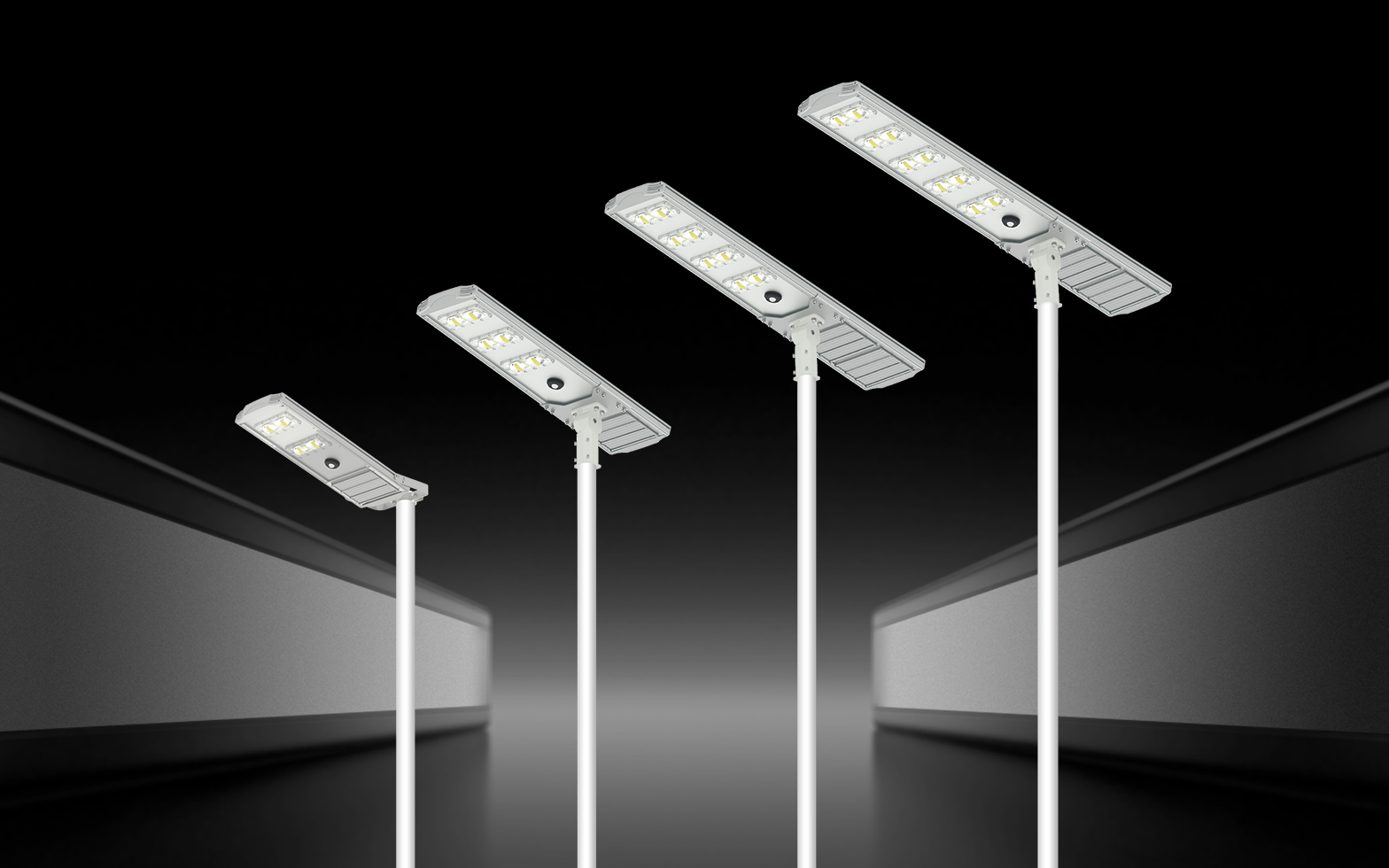

Apollo series
