Home  >  Products  >  Solar Road Lighting  >  Two-lane Road Width 7-8M
>
<
Model No: BMS

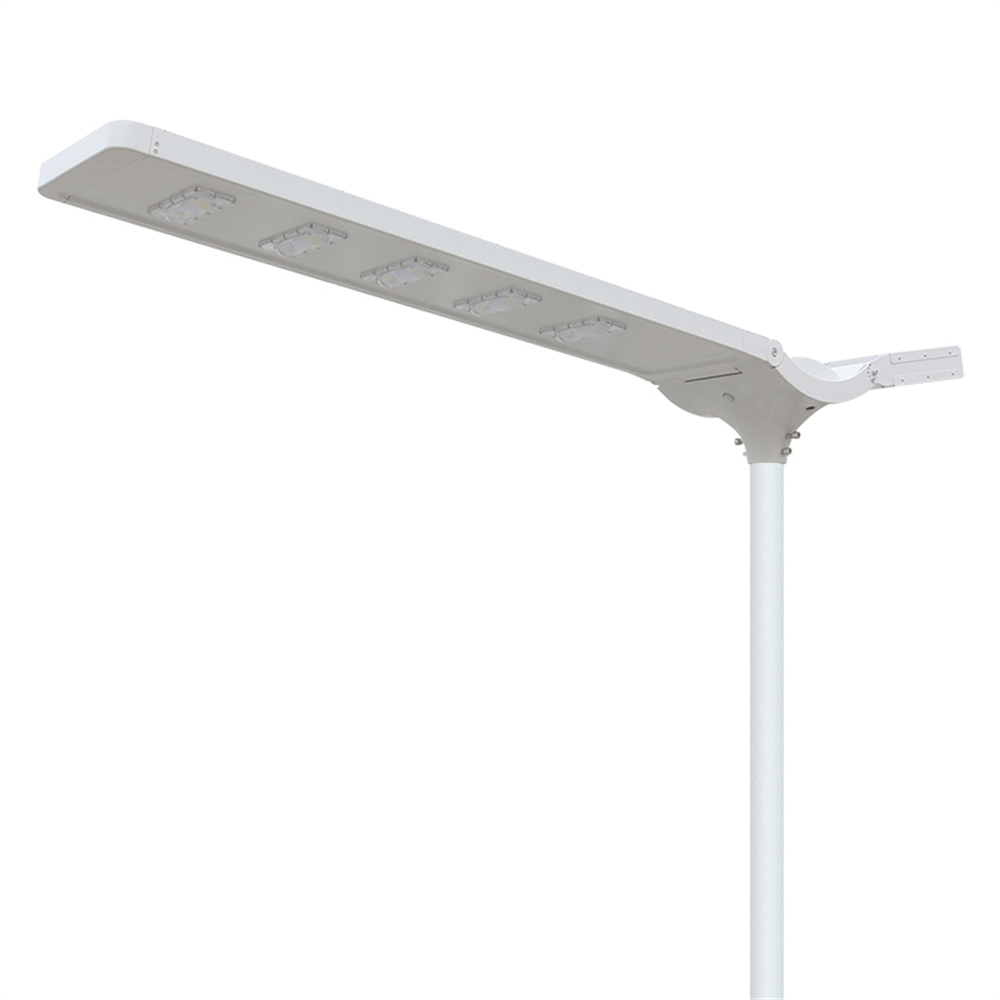

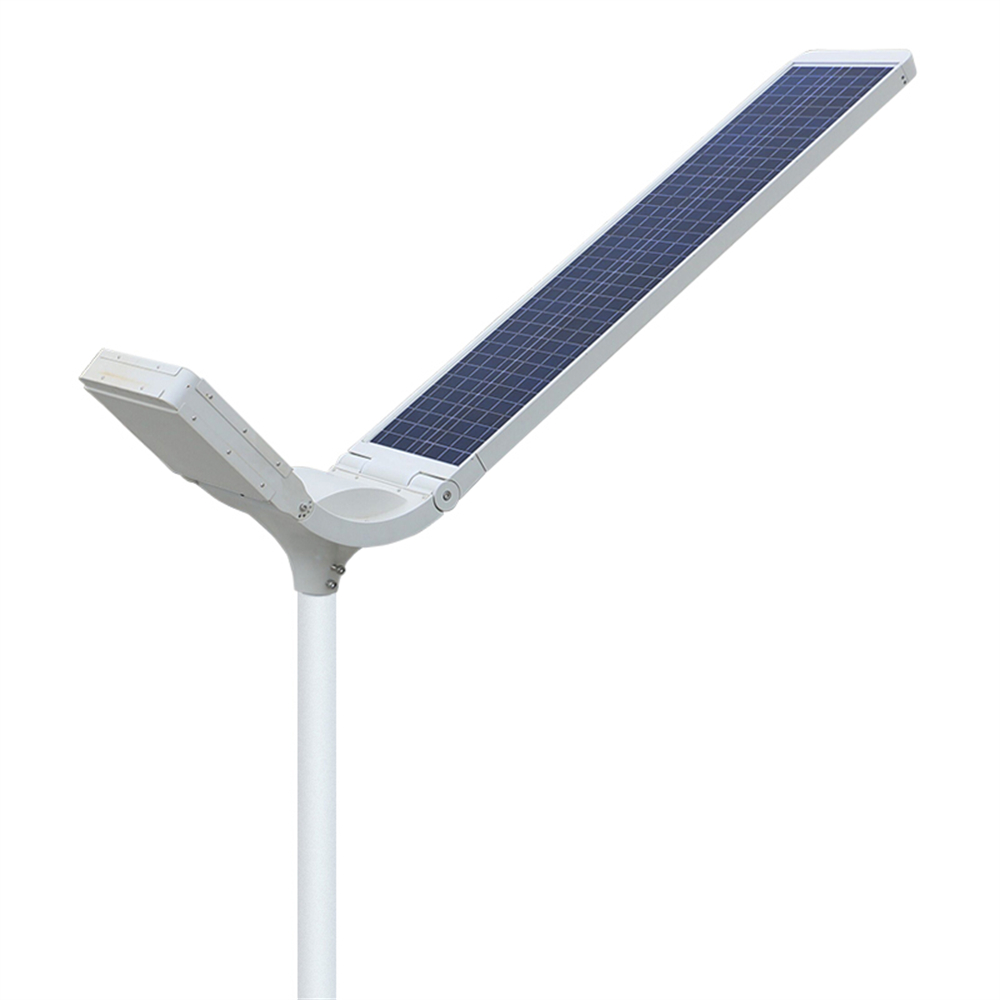

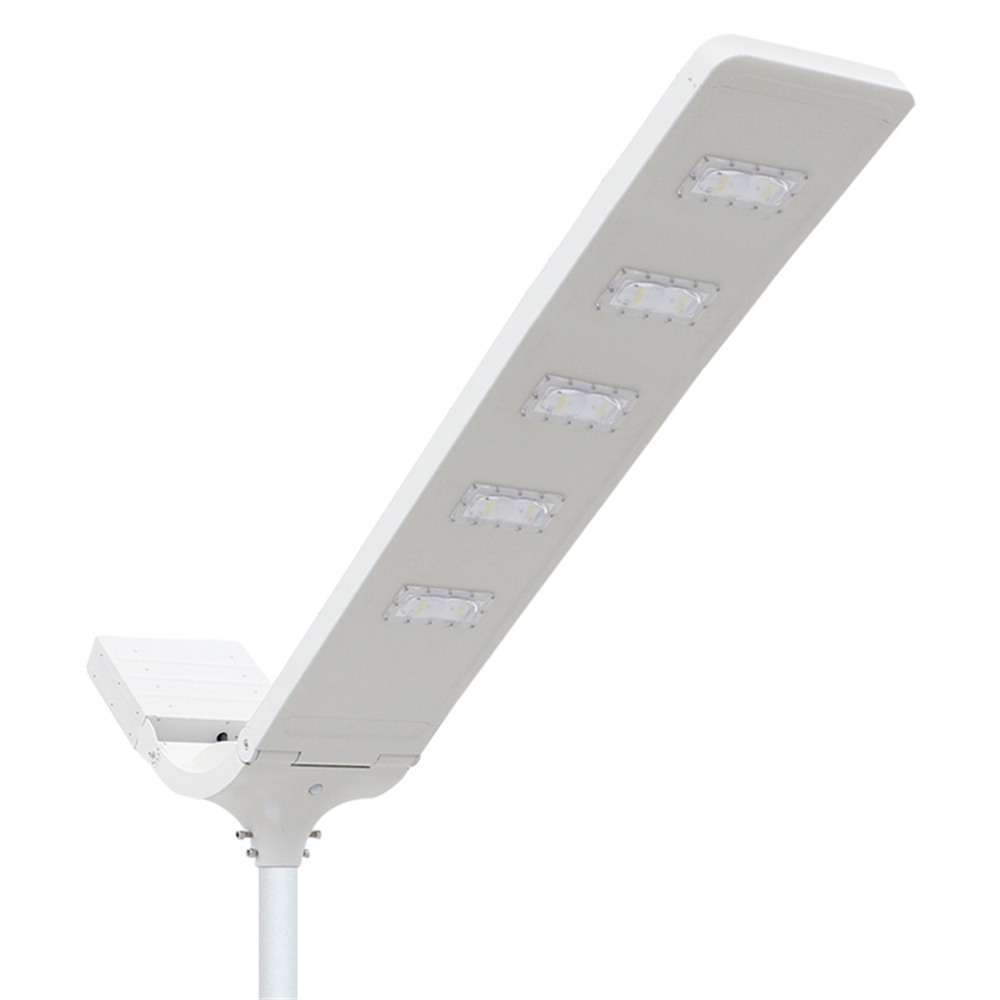

Batman series all in one solar street light

High luminous efficiency led chip

Die-casting aluminum and unique PC lens

6-10 YEARS SUPER LONG LIFESPAN SOLUTION, escort the high-end project

Brand new patent design, convenient maintenance.

Pass the 60m/s wind resistance test

high temperature resistance, Anti-corrosion

IP66 waterproof, Montion sensor available

Suitable for roads with 1-2 lanes




Inquire >
Product details Product specificatons Download & Code



Model NoXSY-BMS-20XSY-BMS-40XSY-BMS-70XSY-BMS-90XSY-BMS-120
Solar Panel20W35W55W60W80W
Battery(LiFePO4)116WH

231WH

384WH460WH576WH
Luminous Flux2000lm4000Im7000lm9000lm12000lm
Led Chips01.png
Warranty3 years
Color Temp4000K-6500K
Beam AngleTYPE III
Lamp Angle0/30 degree vertically
PIR SensorYes(Optimum detecting range:6-8m)
Standard Working ModeFirst 3 hours full brightness,last 9 hours in PlR sensor mode (60% brightness with people, 30% brightness without people)
Back Up Time3 nights
Working Temperature-20℃ to 60℃
Charging Time7-9hrs
Required Pole size60 mm(top end)
IP/IK ClassIP66/IK08
Wind proofpass the 60m/s wind loading wind proof real testing
Installation Height3-4m4-5m4-6m6-8m7-9m
lnstallation Distance15m20m25m25m30m
Lamp Body-Packing(MM)2 ctn/set665×475×175935×475×1751250×475×1751460×475×1751710×475×175
Arm& Batteries pack-Packing(MM)2 ctn/set505×435×310505×435×310525×520×465525×520×465525×520×465
N.W(KGS)16.019.625.027.531.0
G.W(KGS)20.524.030.533.538.0
20GP186 sets168 sets120 sets104 sets95 sets
40GP408 sets336 sets240 sets224 sets204 sets
40HQ422 sets368 sets260 sets250 sets238 sets






Batman series
