■ Working mode can be customized

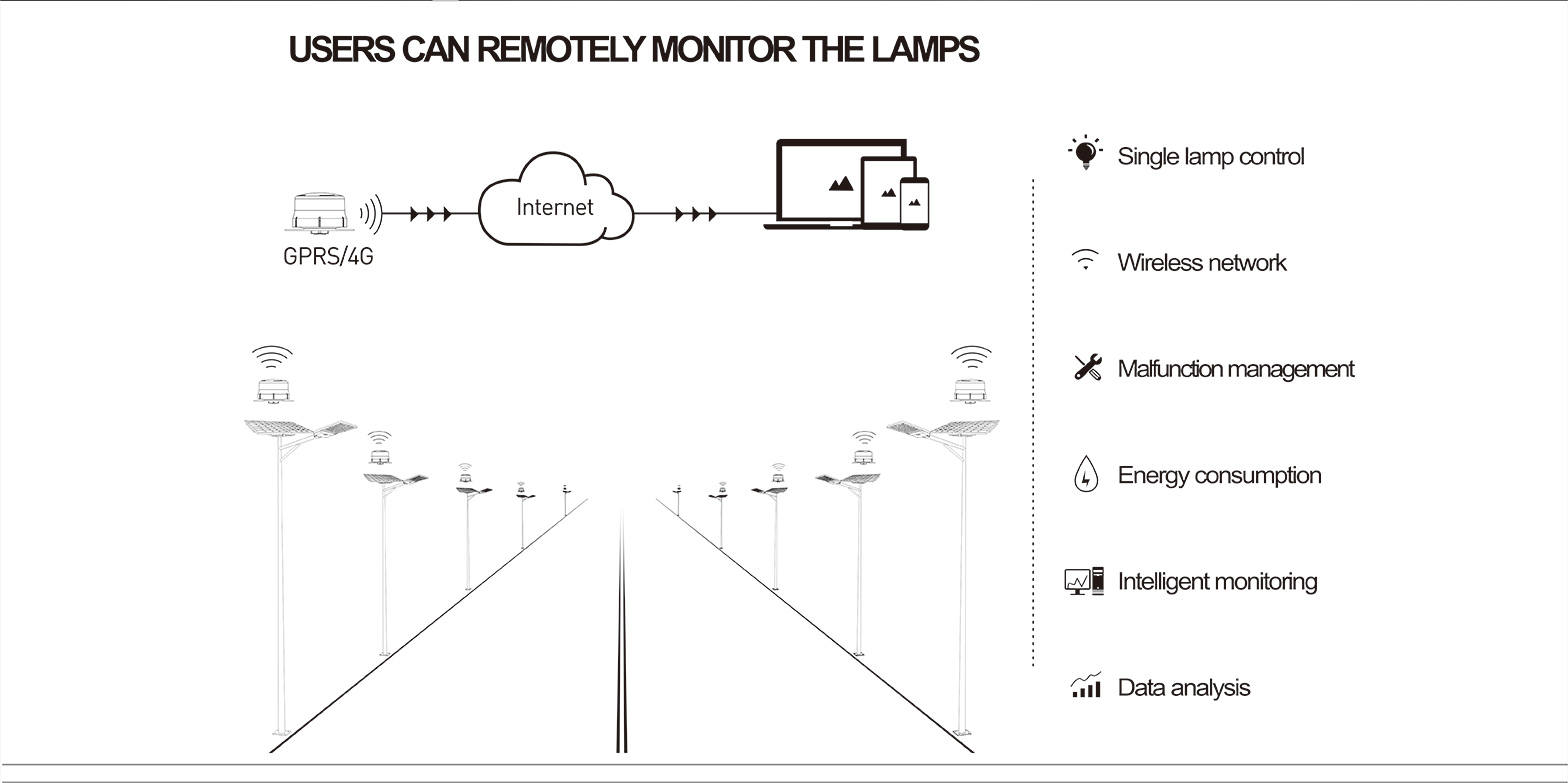

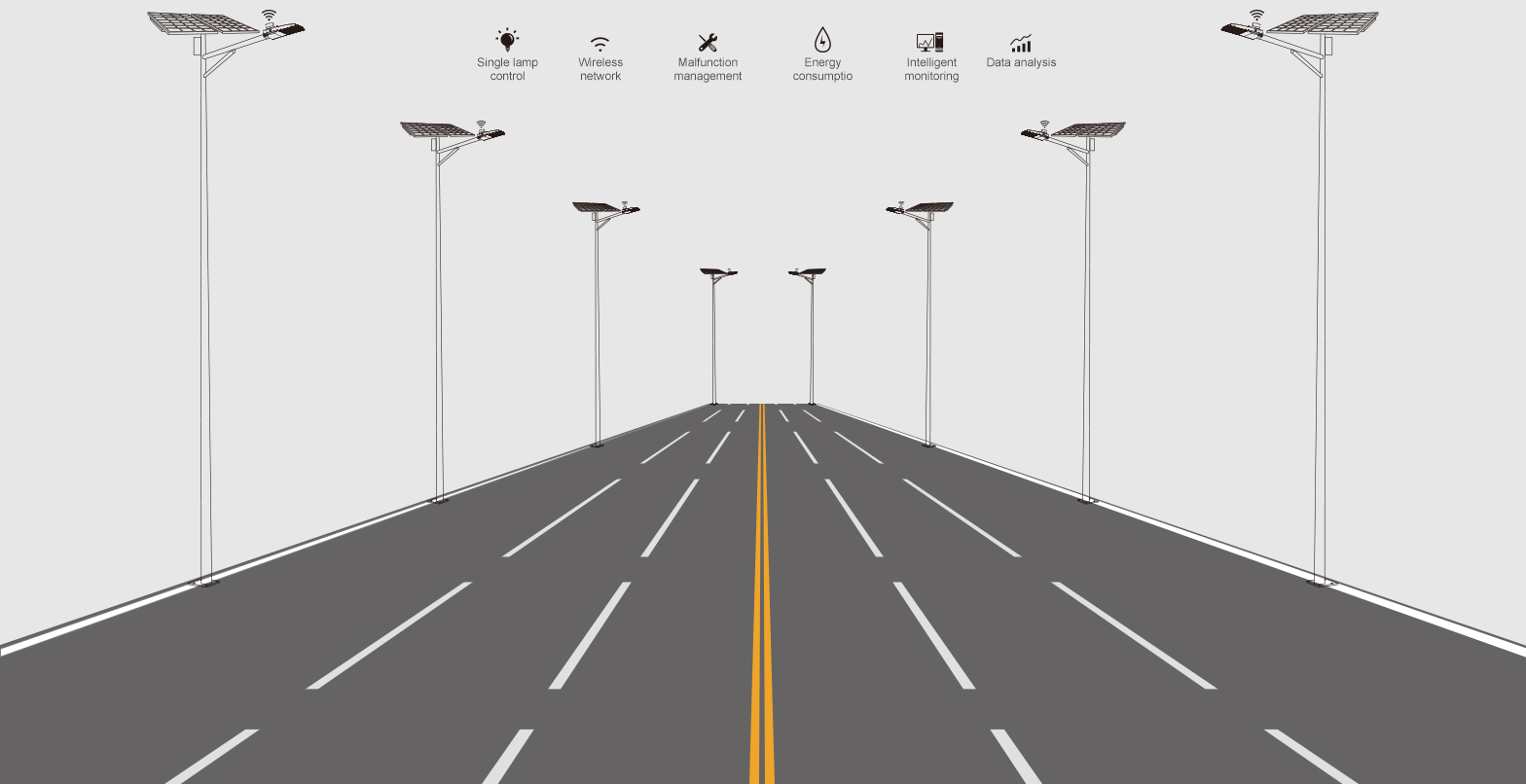

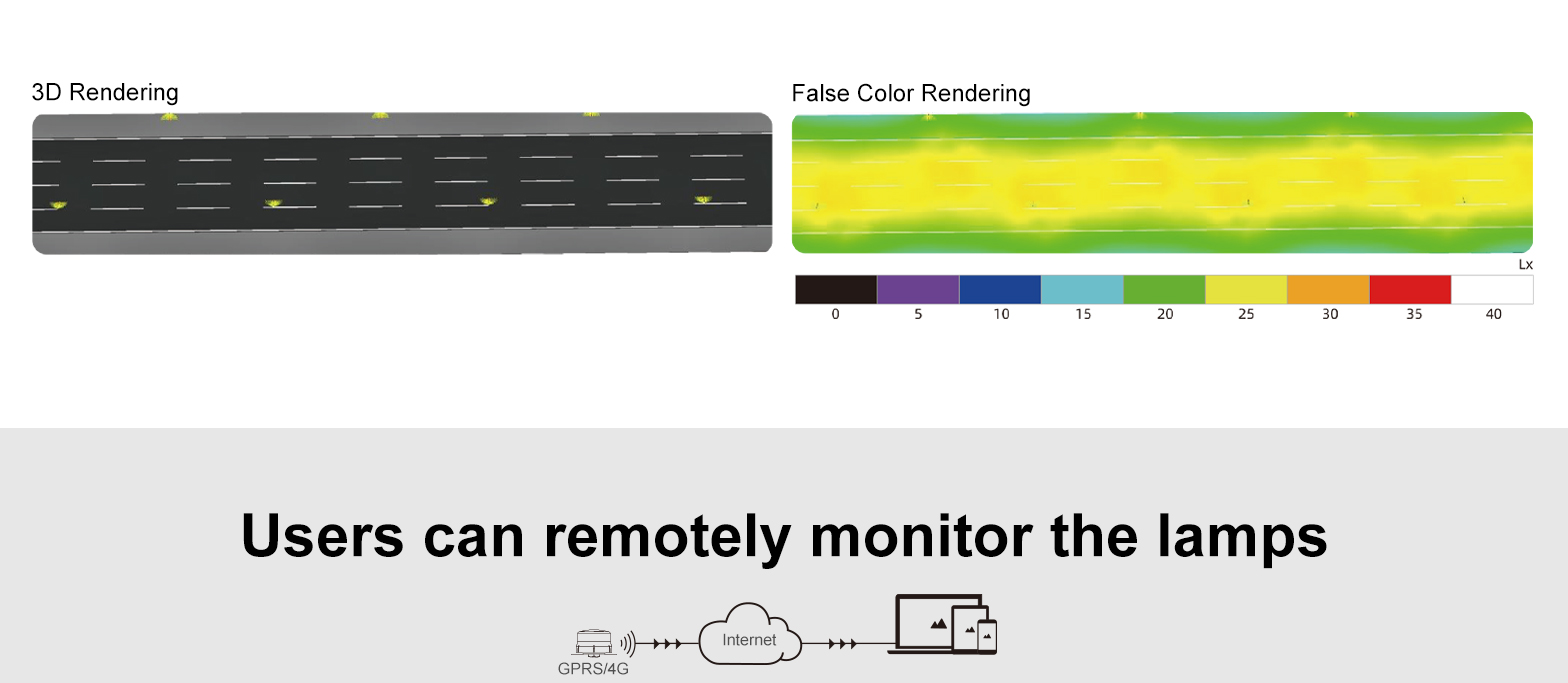

■ Users can remotely monitor the lamps(IOT system)
■ Support solar-grid power hybrid function
■ Comply with global certification standards to ensure safety, reliability and stable performance, including CE ROHS JKR SIRIM SASO NOM UL CB IEC etc.
■ Can be equipped with solar-grid power hybrid solution and IOT smart control system solution
■ The latest LifePO4 battery technology,longer lifespan
■ Professional 3-4 lane road solar street lighting products +solutions
■ Super brightness 10000-20000lm
Solar Engine Technical Data

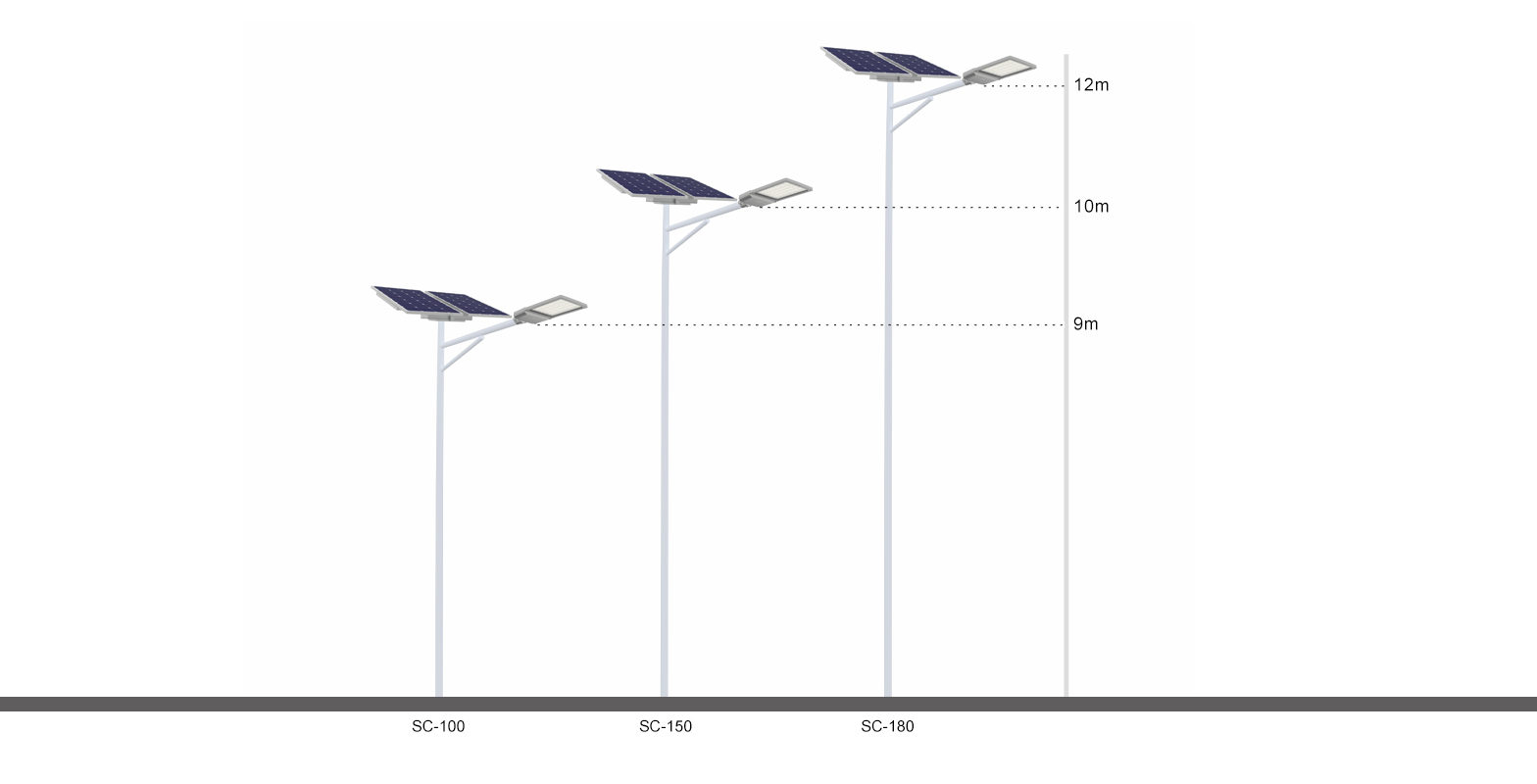

Model No | SC-100 | SC-150 | SC-180 |
Physical Parameters | |||
Power of PV Module (W) | 36V 80W*2 | 36V 205W | 36V 120W*2 |
LiFePO4 Battery Capacity(Wh) | 25.6V 42AH | 25.6V 60AH | 25.6V 72AH |
Controller Type | MPPT controller | ||
Environment Requirements | |||
Charge Temperature | 0℃~60℃ | ||
Discharge Temperature | -20℃-60℃ | ||
Storage Temperature | 0℃~45℃ | ||
Mounting Recommendations | |||
Wind Load Rate (mph) | 130 | ||

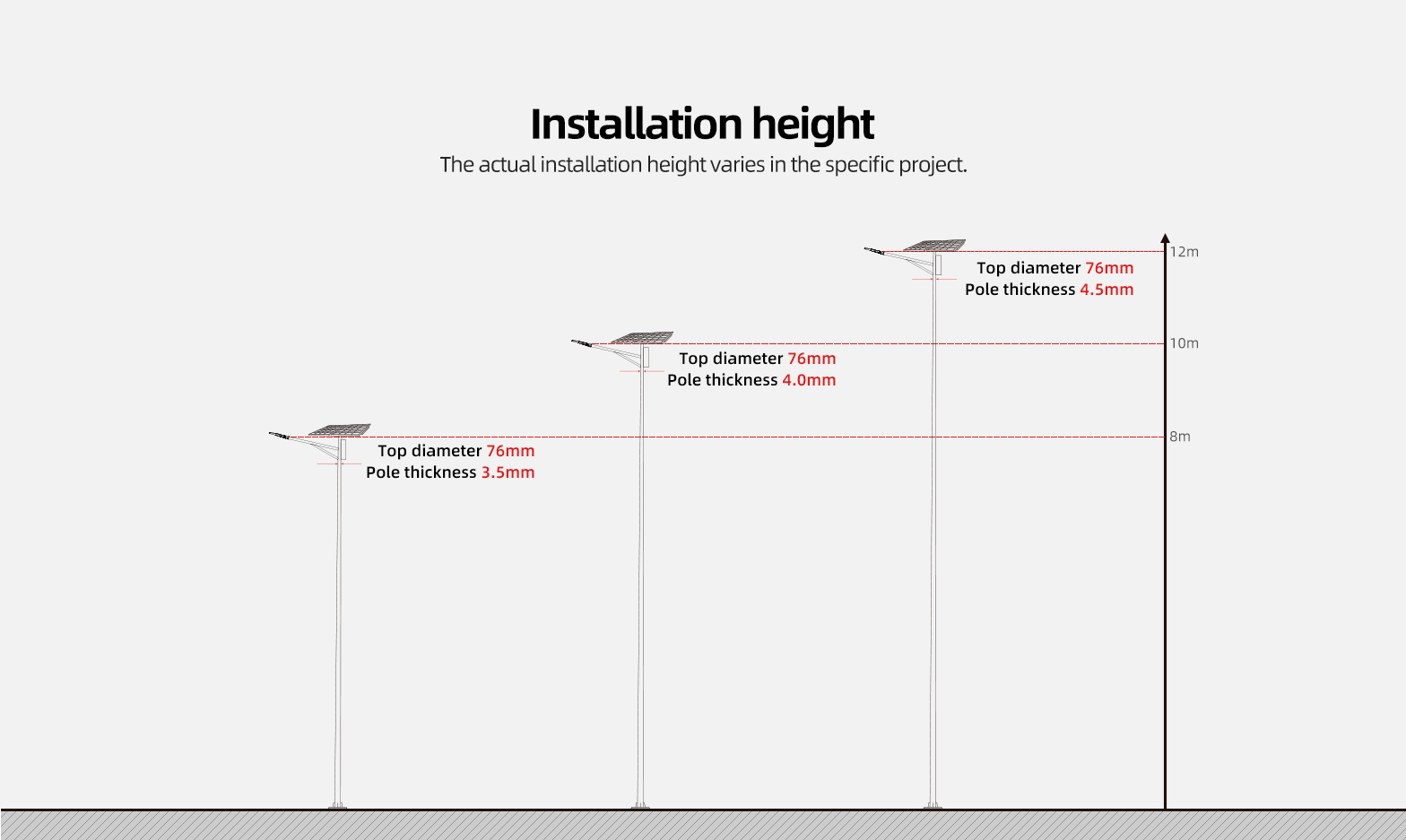

Top of Pole(mm) | 60-75 |
LED Street Light Technical Data
Light Parameters | |||
Luminous Flux (lm) | 10000 | 15000 | 18000 |
Color Temperaure(K) | 4000K-5700K | ||

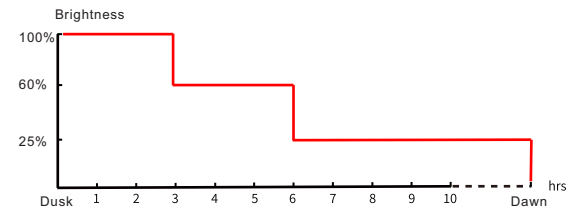

Lighting Mode | ![]() | ||
Physical Parameters | |||
Net Weight of Product (kg) | 4.43 | 4.92 | 6 |
Dimension of Product (mm) | 521*220*75 | 521*270*76 | 643*330*77 |
Packing Parameters | |||
Dimension of Carton (mm) | 560*330*140 | 620*330*155 | 695*380*155 |
Gross Weight of Product (kg) | 5.23 | 5.72 | 6.8 |
Packing (pcs) | 1 | 1 | 1 |
Mounting Recommendations | |||
Wind Load Rate (mph) | 130 | ||
Arm OD (mm) | 60 |
