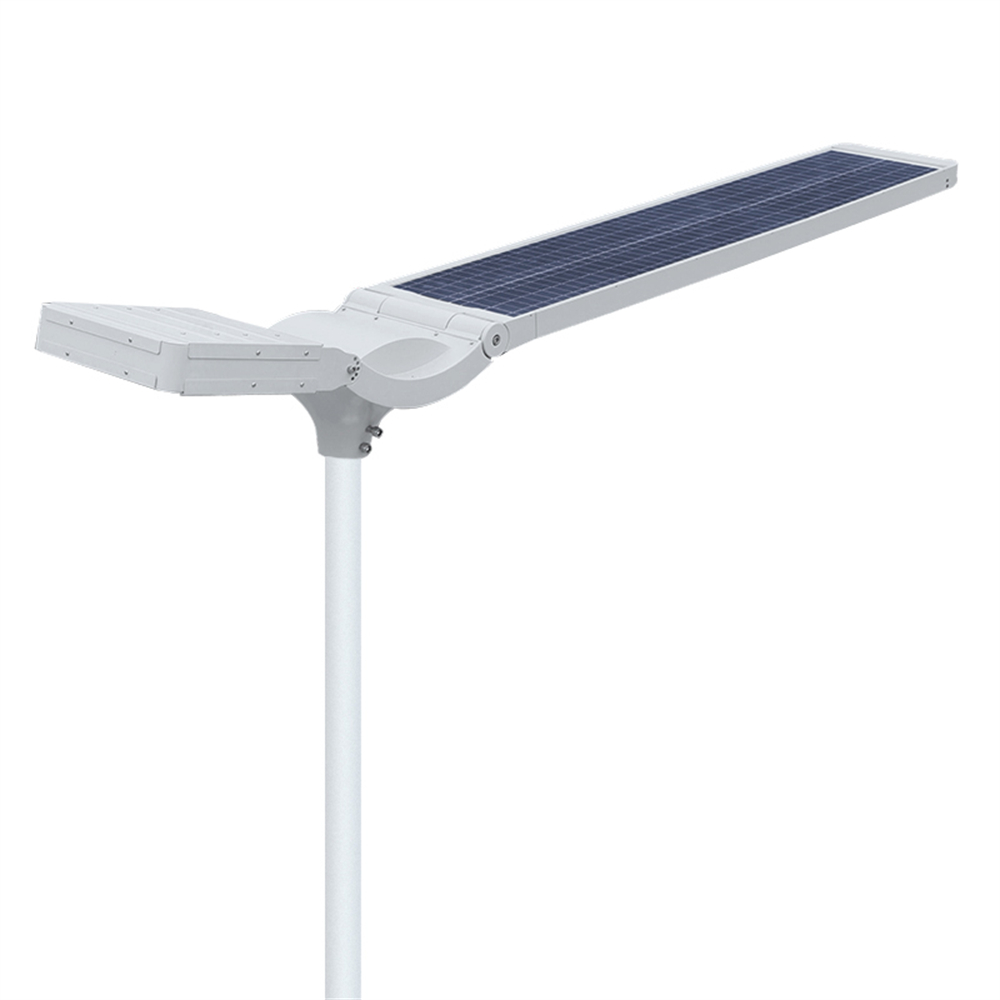

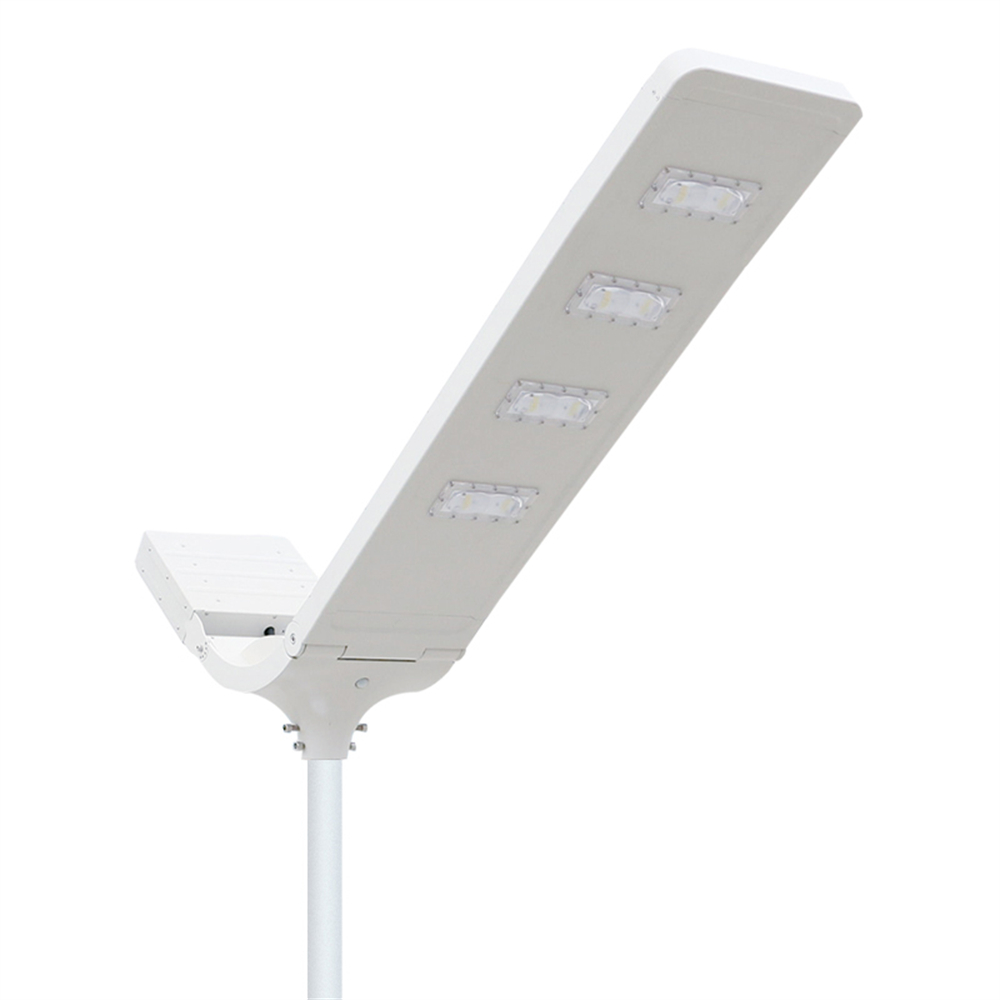

90w 9000lm solar street lights with pole for 2 lanes municipal project

Model No: BMS-90

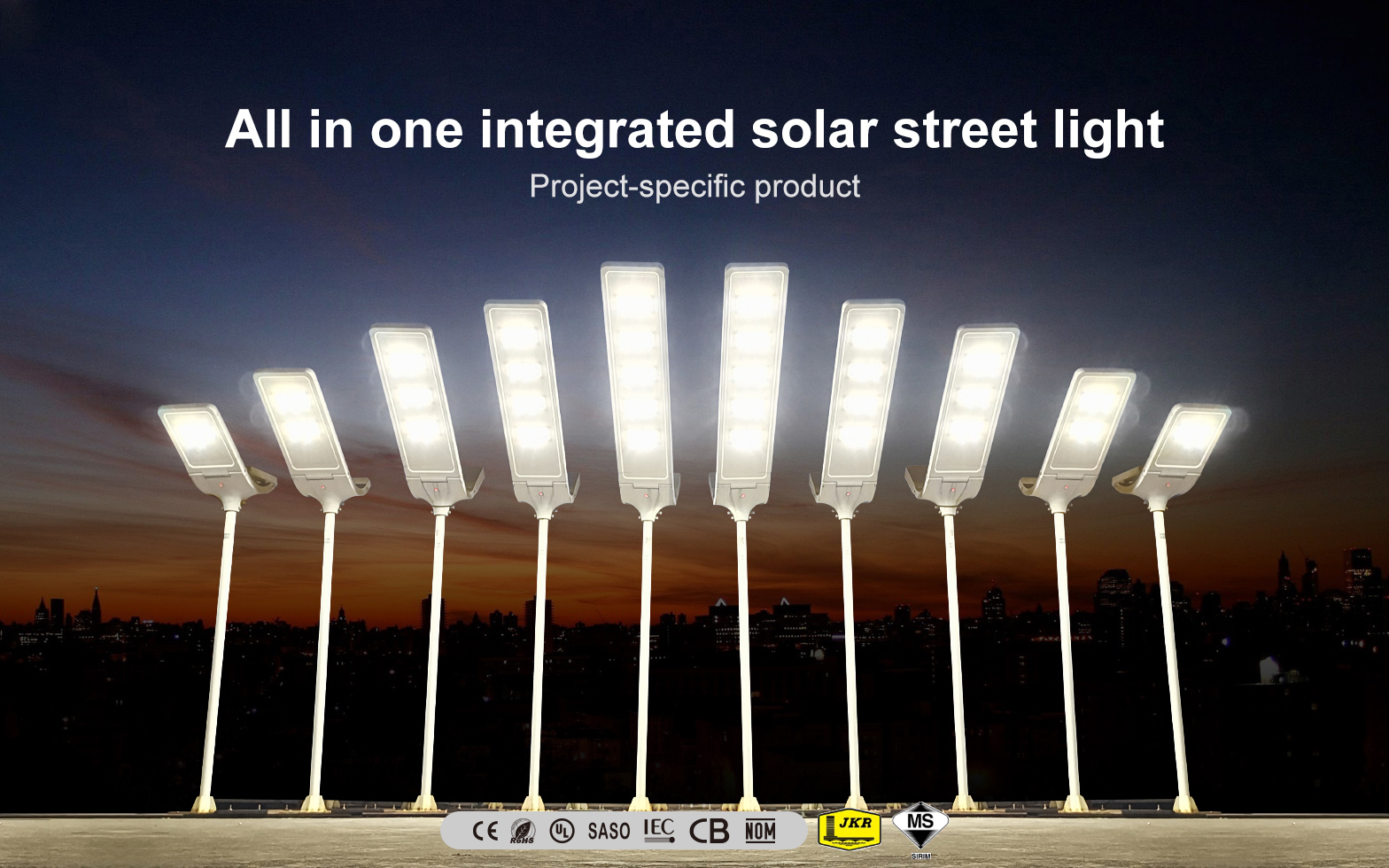

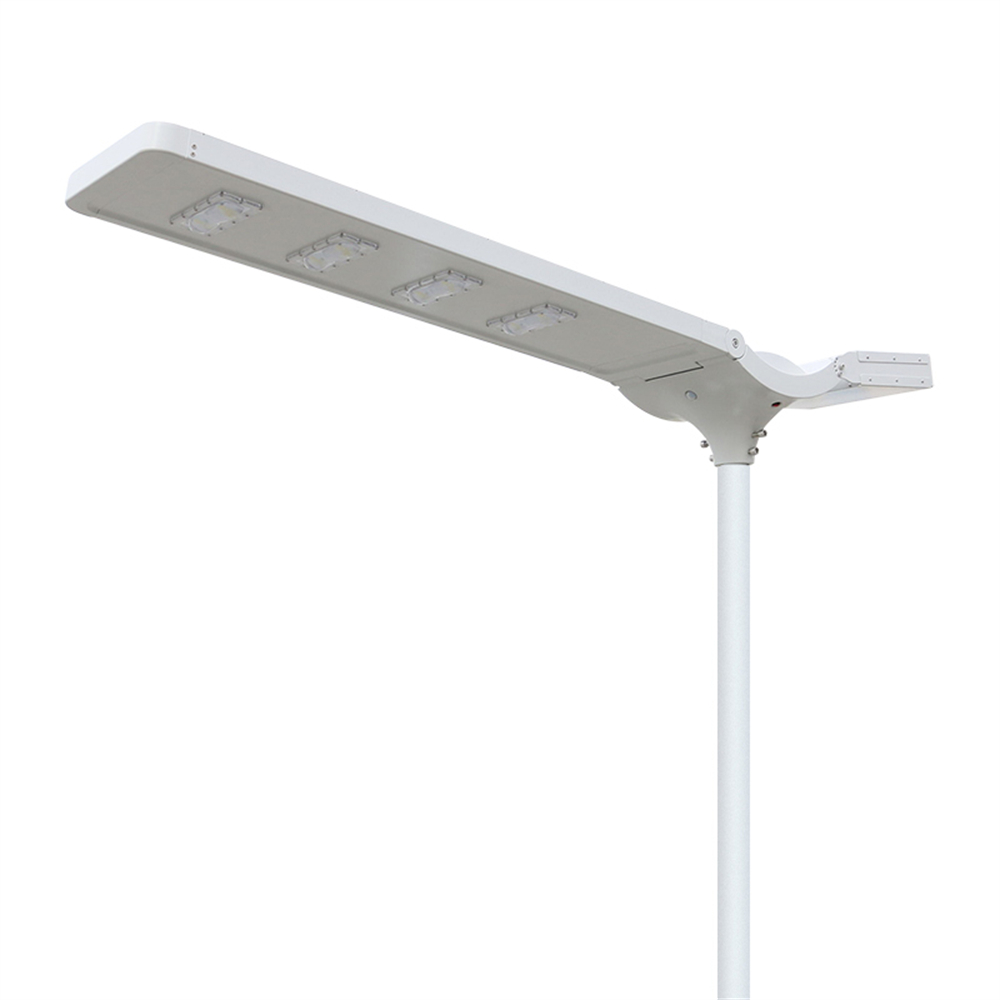

90w 9000lm all in one solar street light for 2 lanes municipal project

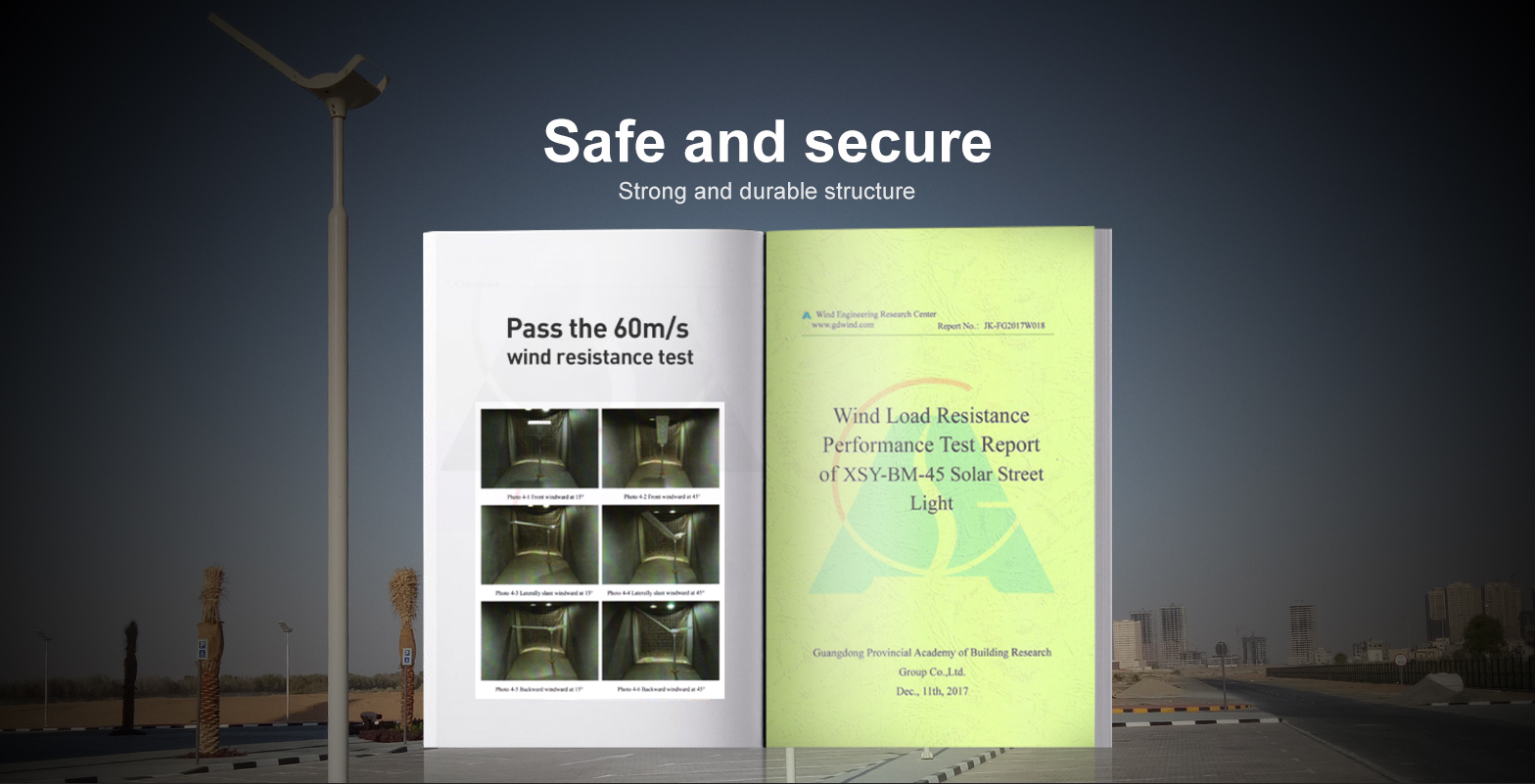

Pass 60m/s Wind Load Resistance Performance Test Report, IP66

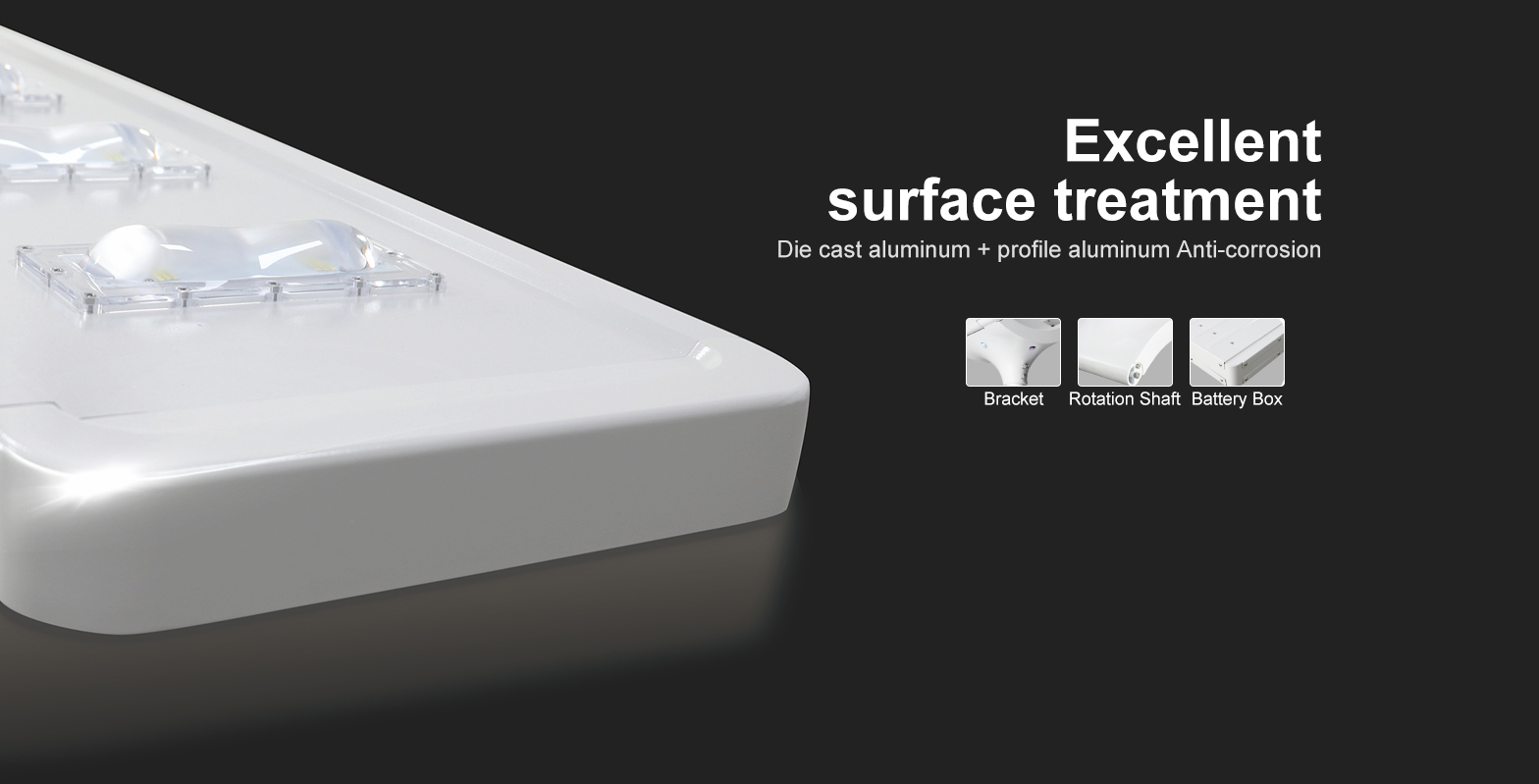

Die cast aluminum+Profile Aluminum material, anti-corrosion.Anti-rust

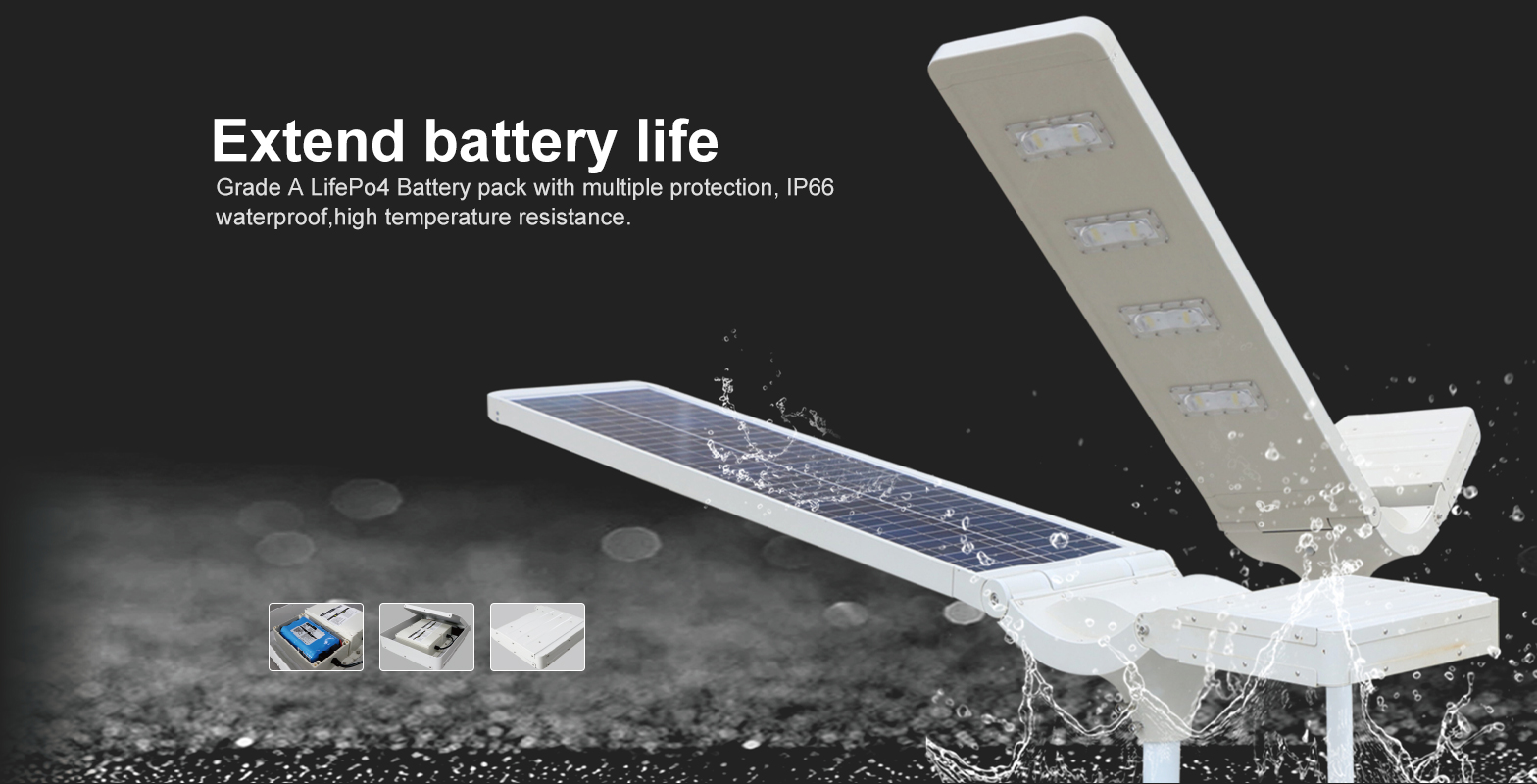

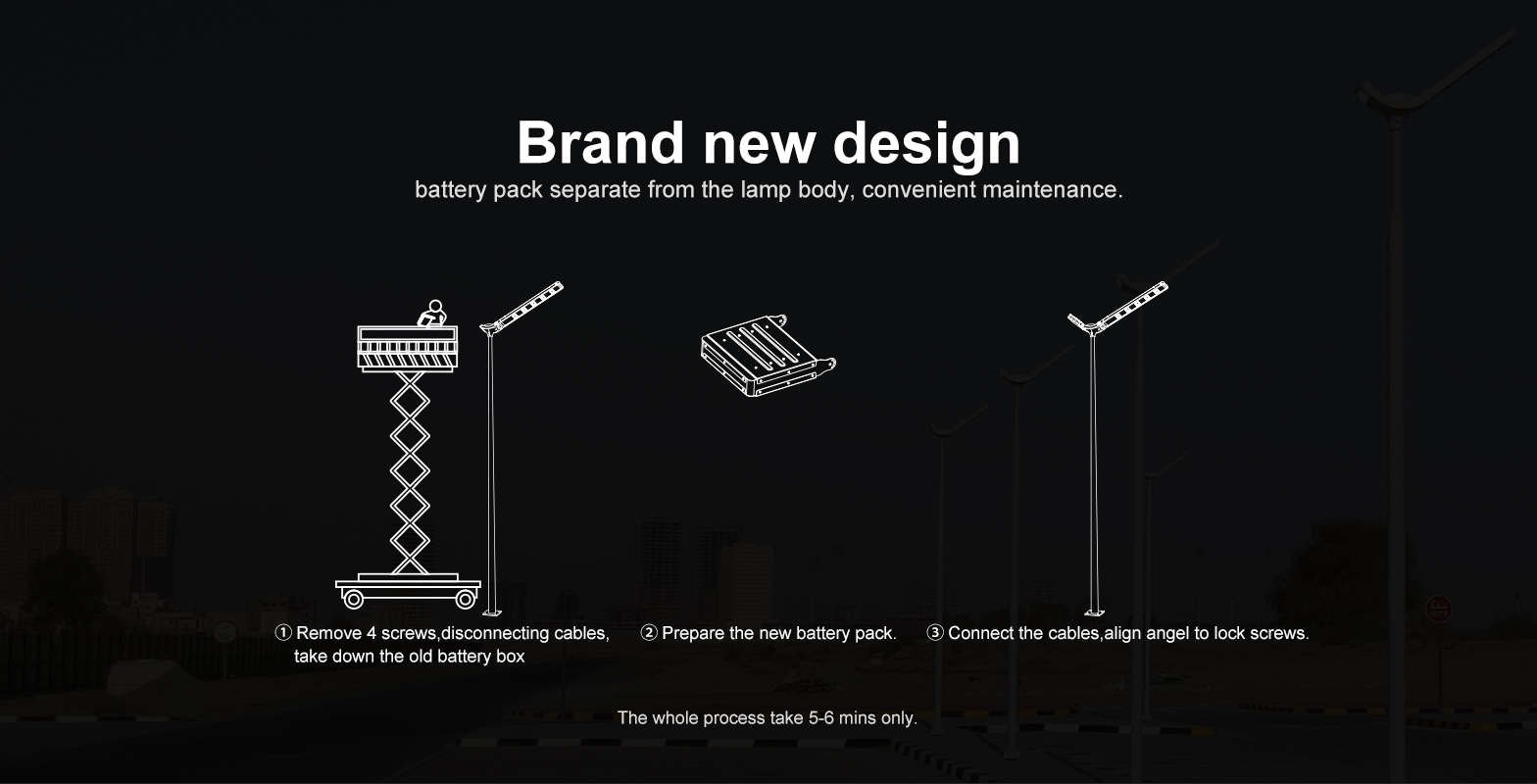

The latest LifePO4 battery technology, separate replaceable battery box, to fullfil ultra long warranty solution

Comply with global certification standards to ensure safety, reliability and stable performance, including CE ROHS JKR SIRIM SASO NOM UL CB IEC etc.

14 years municipal project experience for solar street lighting

Professional 2-lane road solar street lighting products+solutions

Request A Quote >

Product details Product specificatons Download & Code

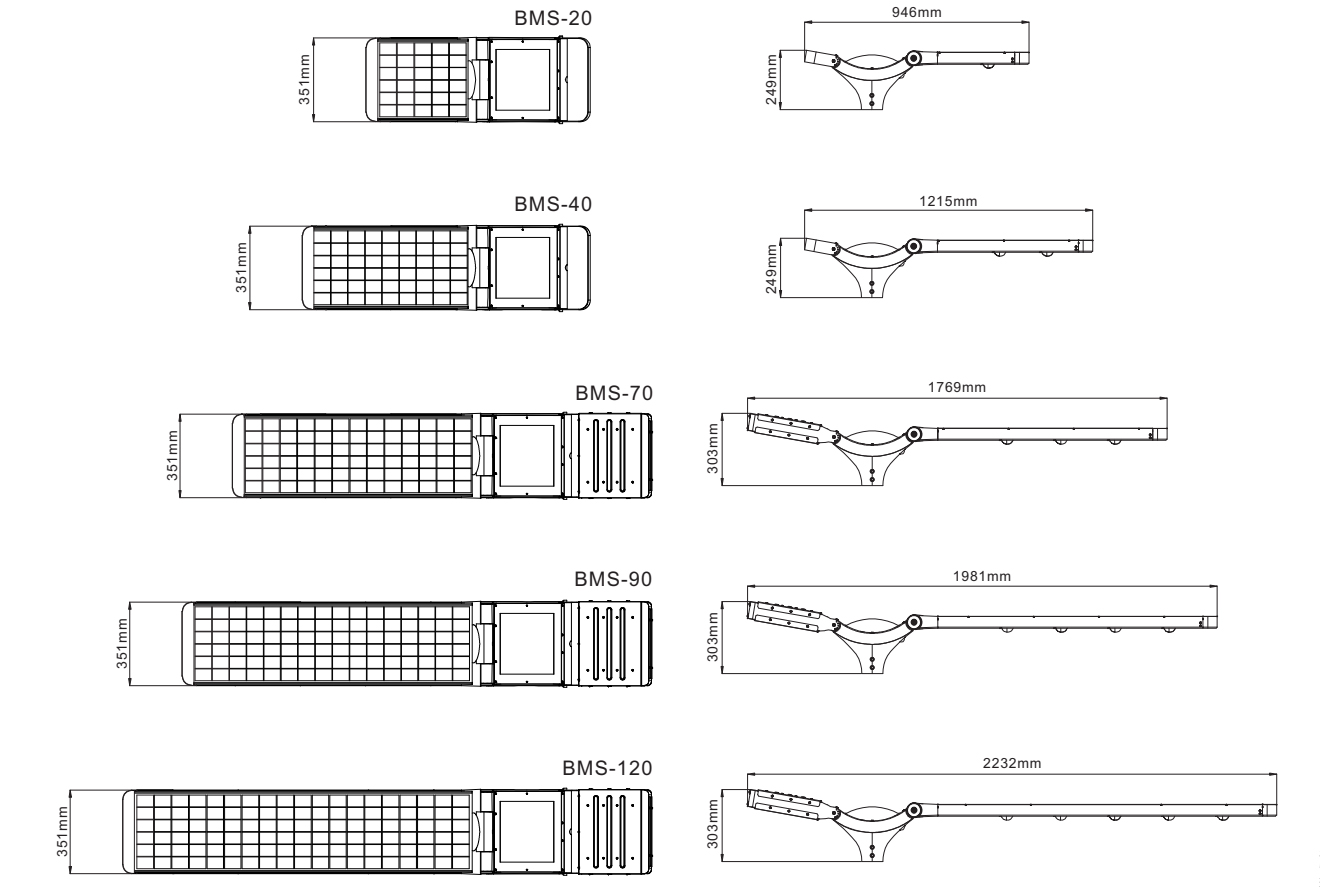

Model No	BMS-20	BMS-40	BMS-70	BMS-90	BMS-120
Solar Panel	20W	35W	55W	60W	80W
Battery(LiFePO4)	116WH	231WH	384WH	460WH	576WH
Luminous Flux	2000lm	4000Im	7000lm	9000lm	12000lm
Led Chips
Warranty	3 years
Color Temp	4000K-6500K

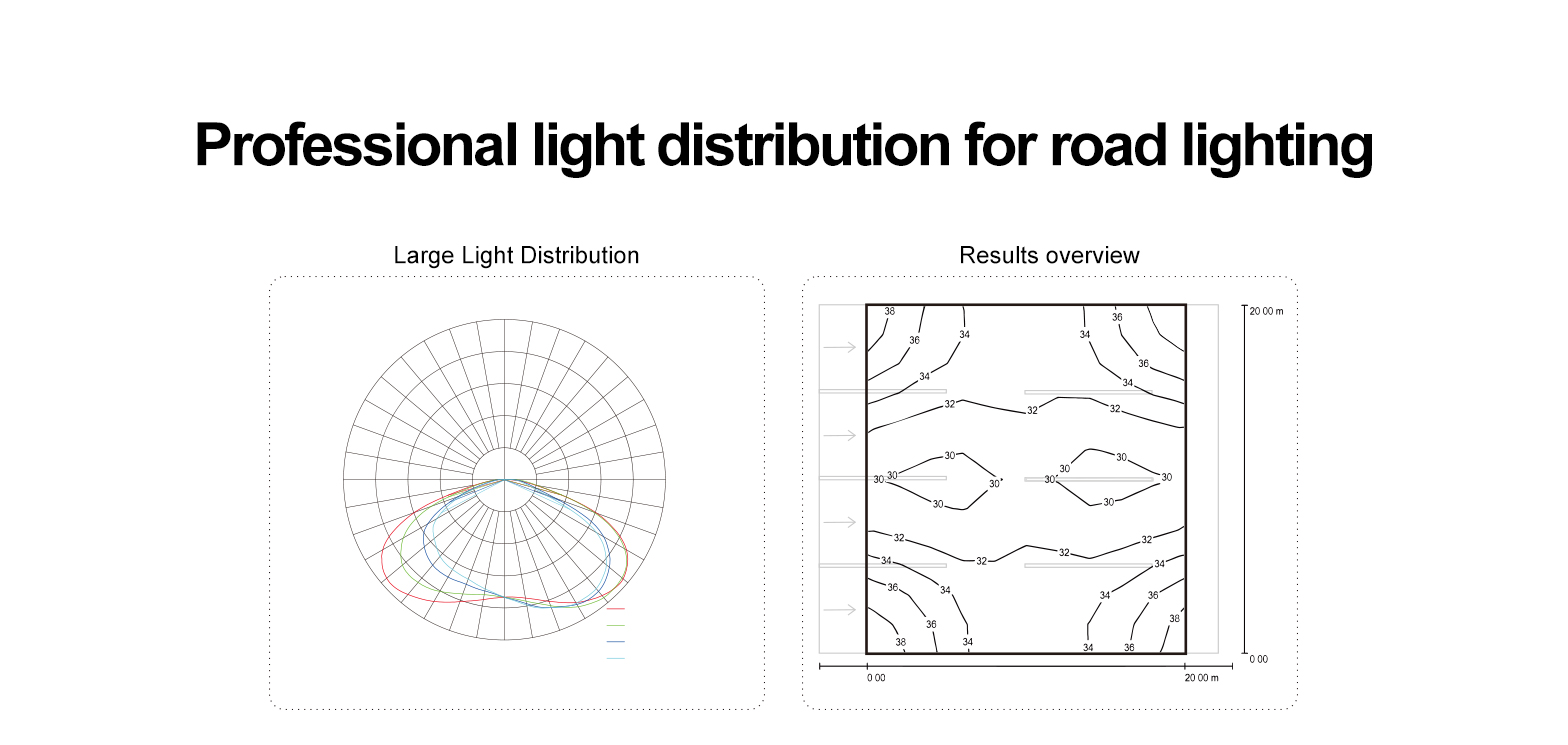

Beam Angle	TYPE III
Lamp Angle	0/30 degree vertically
PIR Sensor	Yes(Optimum detecting range:6-8m)
Standard Working Mode	First 3 hours full brightness,last 9 hours in PlR sensor mode (60% brightness with people, 30% brightness without people)
Back Up Time	3 nights
Working Temperature	-20℃ to 60℃
Charging Time	7-9hrs
Required Pole size	60 mm(top end)
IP/IK Class	IP66/IK08
Wind proof	pass the 60m/s wind loading wind proof real testing

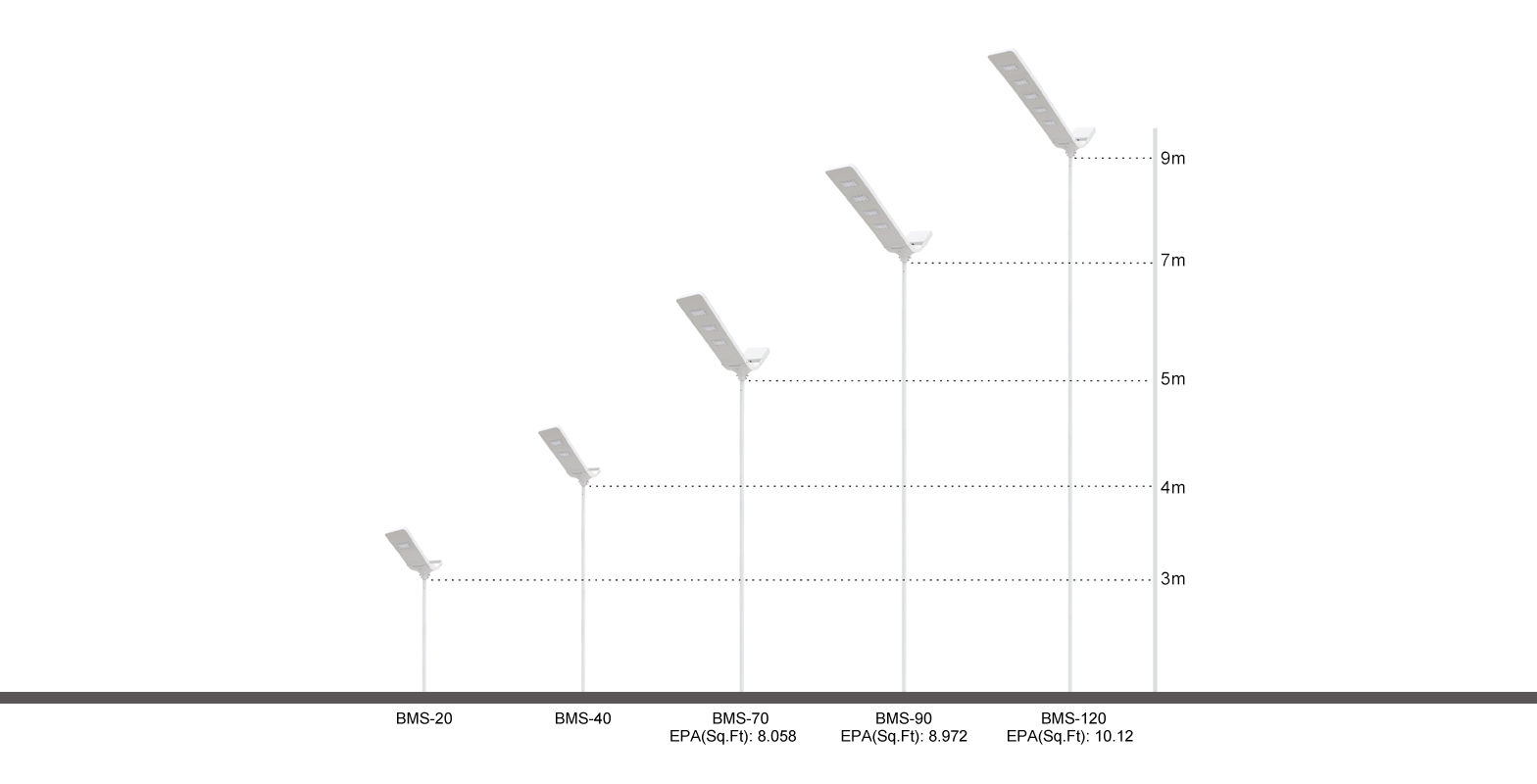

Installation Height	3-4m	4-5m	4-6m	6-8m	7-9m
lnstallation Distance	15m	20m	25m	25m	30m

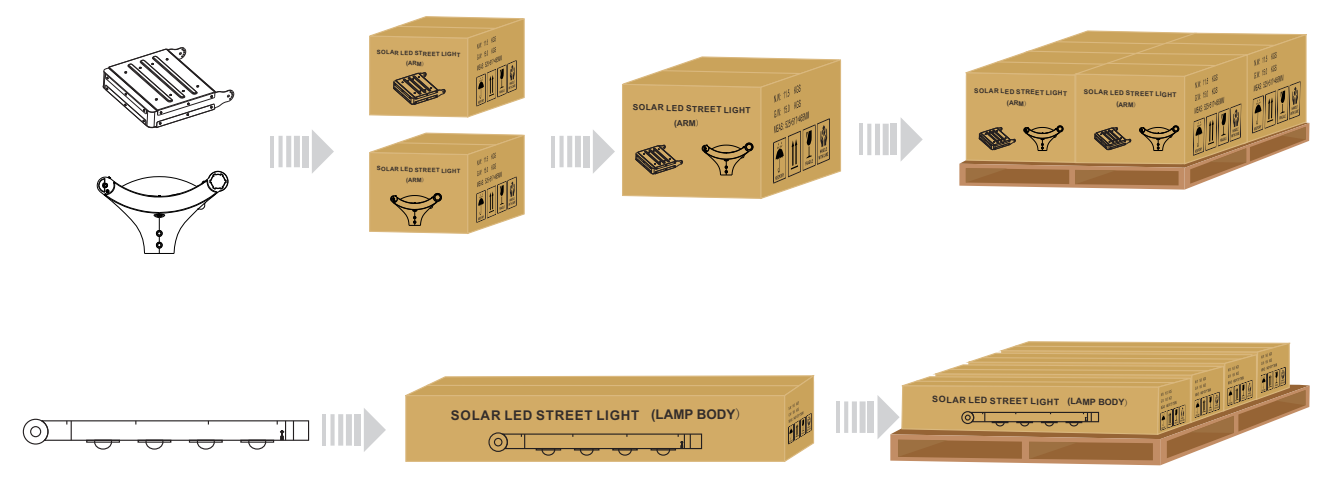

Lamp Body-Packing(MM)2 ctn/set	665×475×175	935×475×175	1250×475×175	1460×475×175	1710×475×175
Arm& Batteries pack-Packing(MM)2 ctn/set	505×435×310	505×435×310	525×520×465	525×520×465	525×520×465
N.W(KGS)	16.0	19.6	25.0	27.5	31.0
G.W(KGS)	20.5	24.0	30.5	33.5	38.0

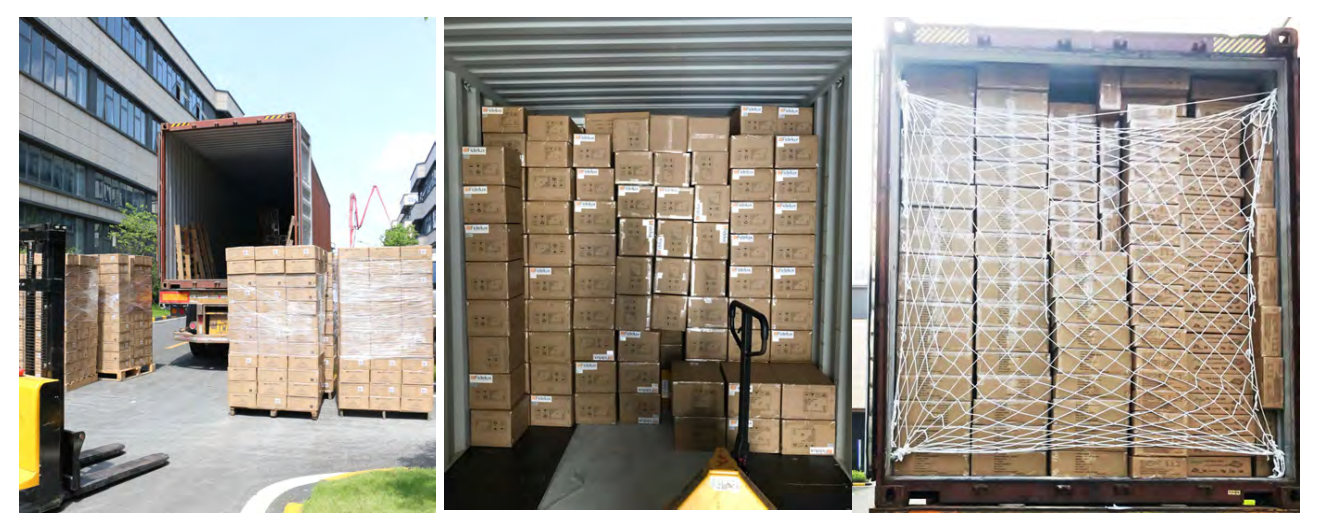

20GP	186 sets	168 sets	120 sets	104 sets	95 sets
40GP	408 sets	336 sets	240 sets	224 sets	204 sets
40HQ	422 sets	368 sets	260 sets	250 sets	238 sets
