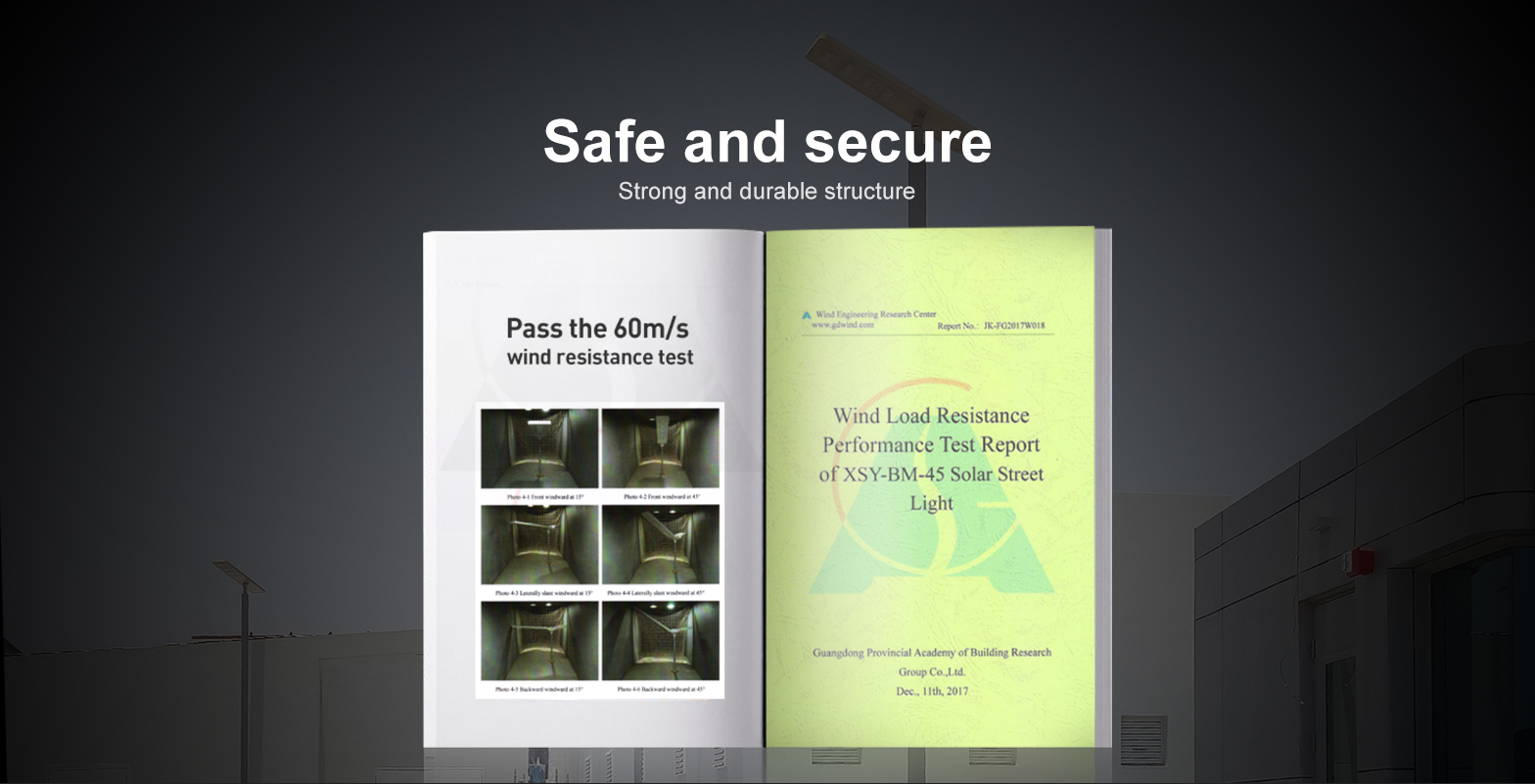

▼ Pass 60m/s Wind Load Resistance Performance Test Report, IP66
▼ Die cast aluminum+Profile Aluminum material, anti-corrosion.Anti-rust
▼ The latest lithium battery technology, battery pack replaceable
▼ Comply with global certification standards to ensure safety, reliability and stable performance, including CE ROHS JKR SIRIM SASO NOM UL CB IEC etc.
▼ Can be equipped with solar-grid power hybrid solution and IOT smart control system solution

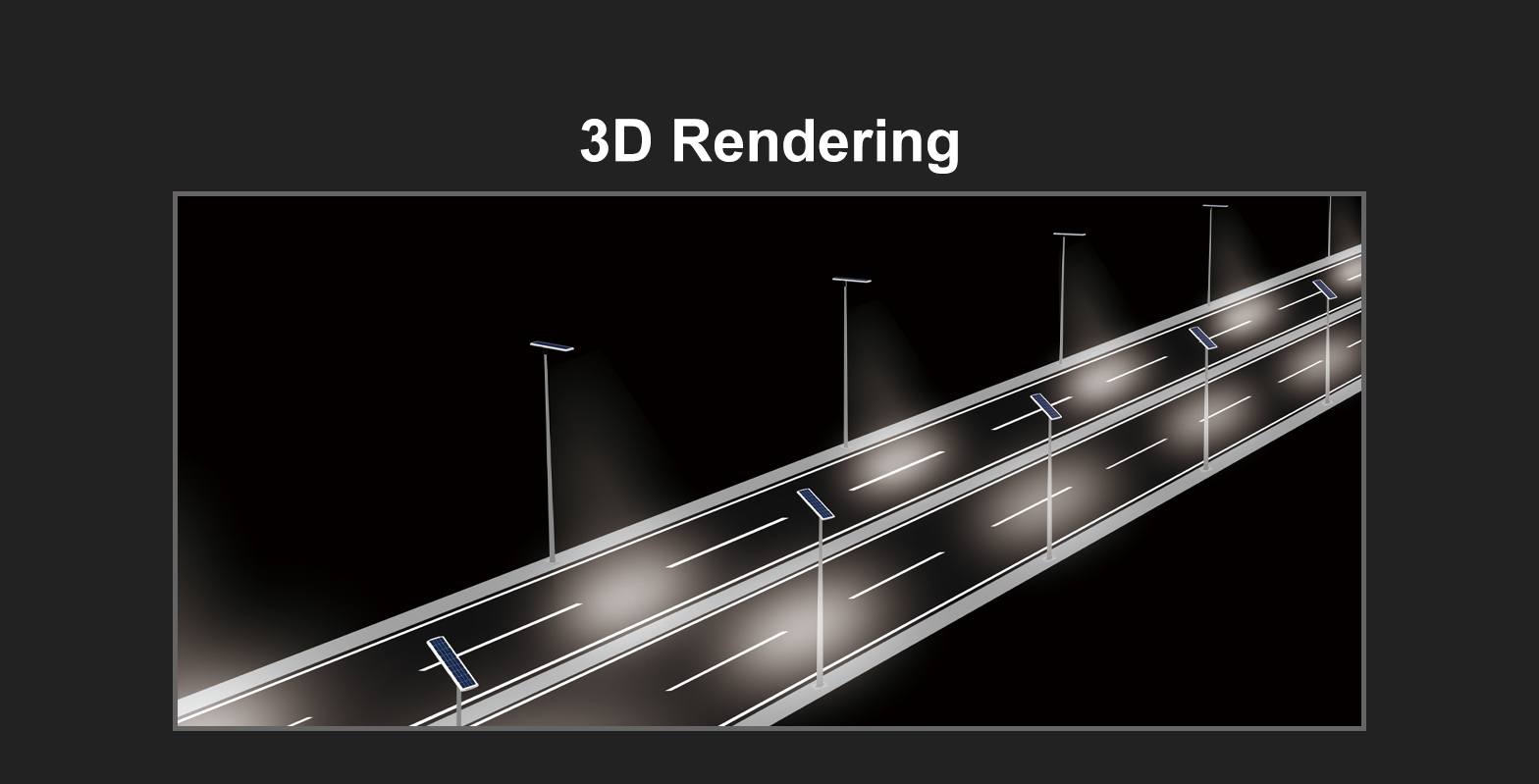

▼ Professional 2-lane road solar street lighting products+solutions

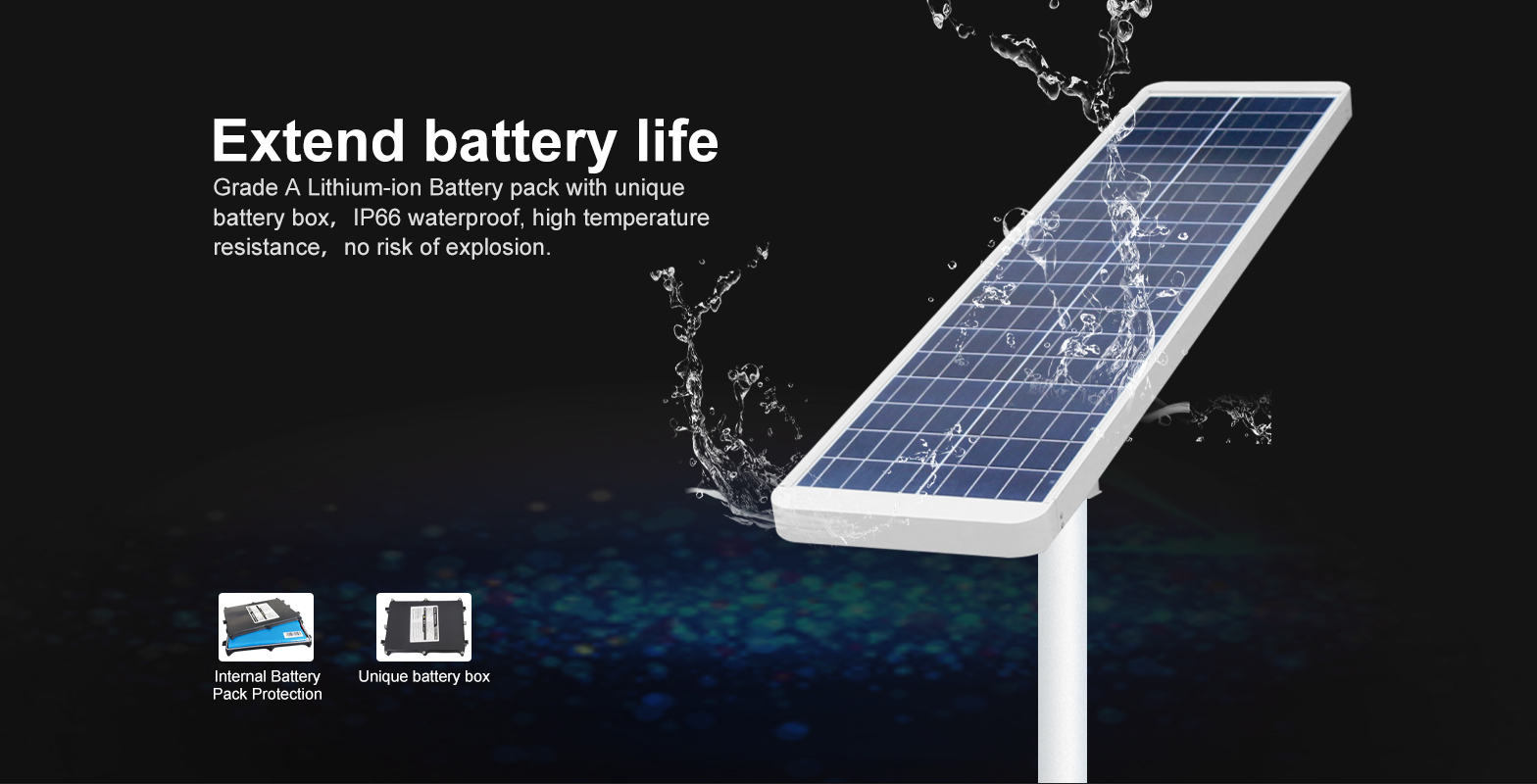

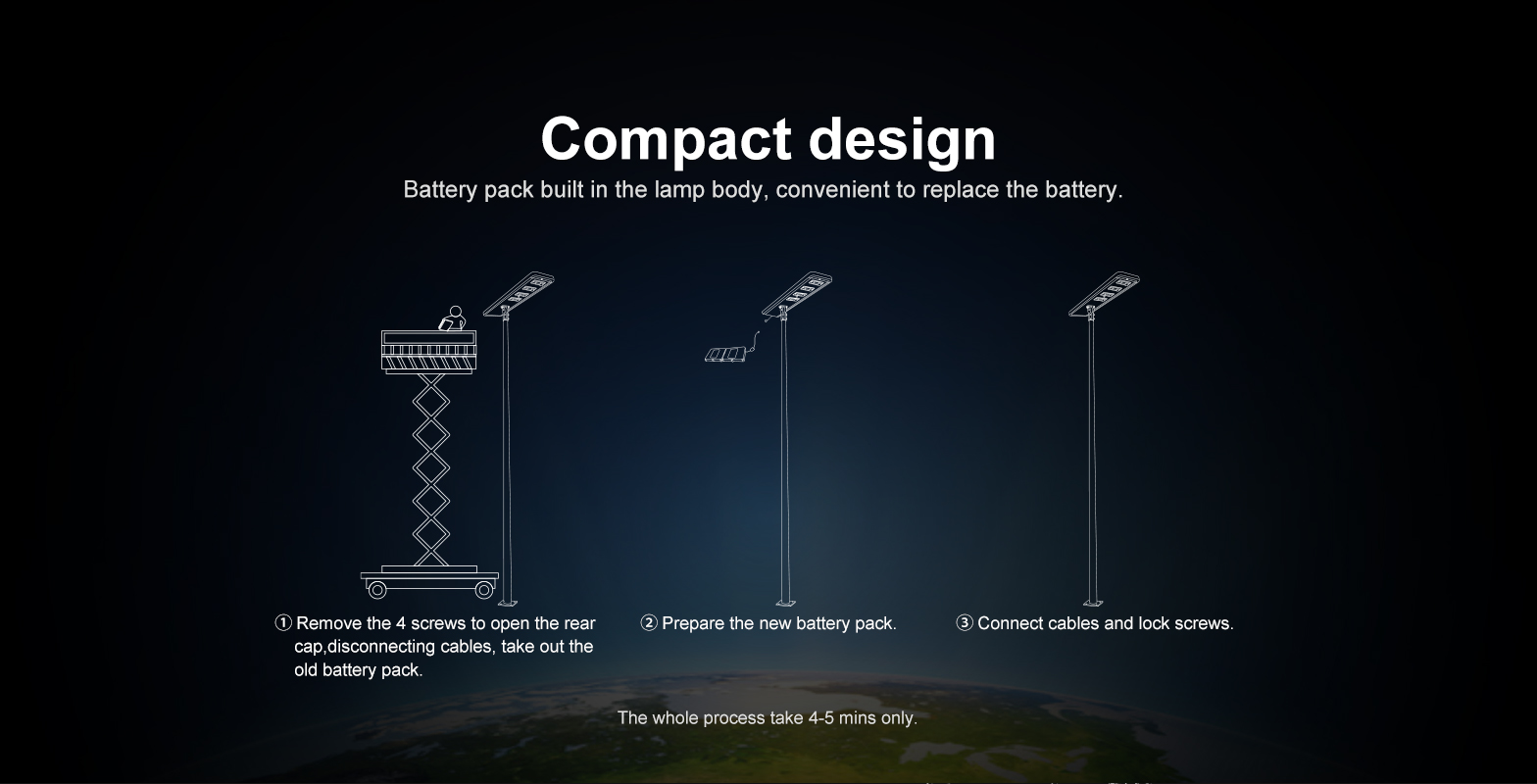

▼ The latest LifePO4 battery technology, separate replaceable battery box, to fullfil ultra long warranty solution
Model No | EBM-30 | EBM-40 | EBM-60 | EBM-80 |
Solar Panel | 40W | 60W | 70W | 90W |
Battery(Lithium-ion) | 222WH | 388.5WH | 444WH | 583WH |
Luminous Flux | 4200lm | 5500lm | 8100lm | 11000lm |
Led Chips | ![]() | |||
Warranty | 2 years | |||
Color Temp | 4000K-6500K | |||

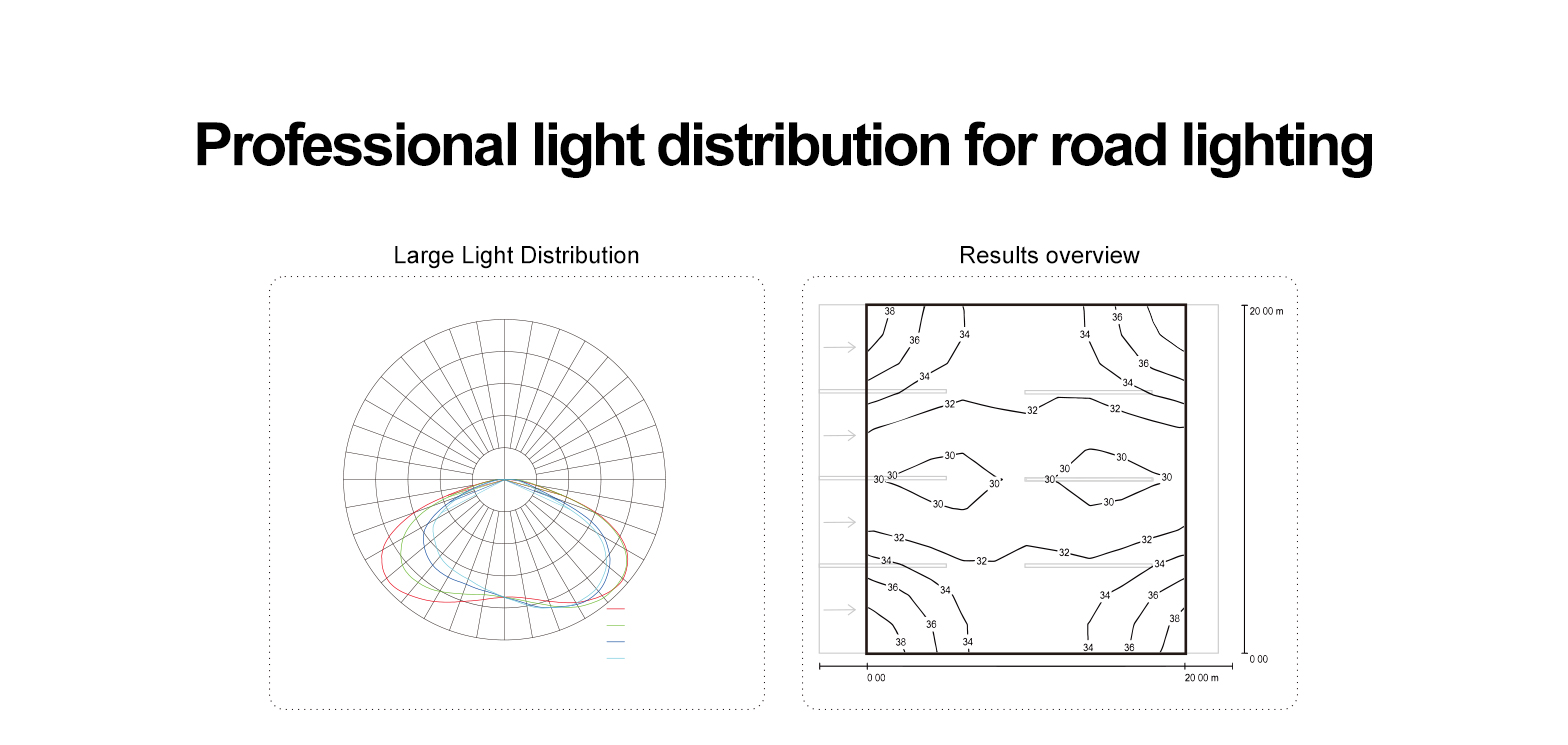

Beam Angle | TYPE III | |||
Lamp Angle | 0/15/30 degree vertically | |||
PIR Sensor | Yes(Optimum detecting range:6-8m) | |||
Standard Working Mode | First 3 hours full brightness,last 9 hours in PlR sensor mode (60% brightness with people, 30% brightness without people) | |||
Back Up Time | 3 nights | |||
Working Temperature | -20°C to 60°C | |||
Charging Time | 7-9hrs | |||
Required Pole Size | 60 mm(top end) | |||
IP/lK Class | IP66 / lK08 | |||

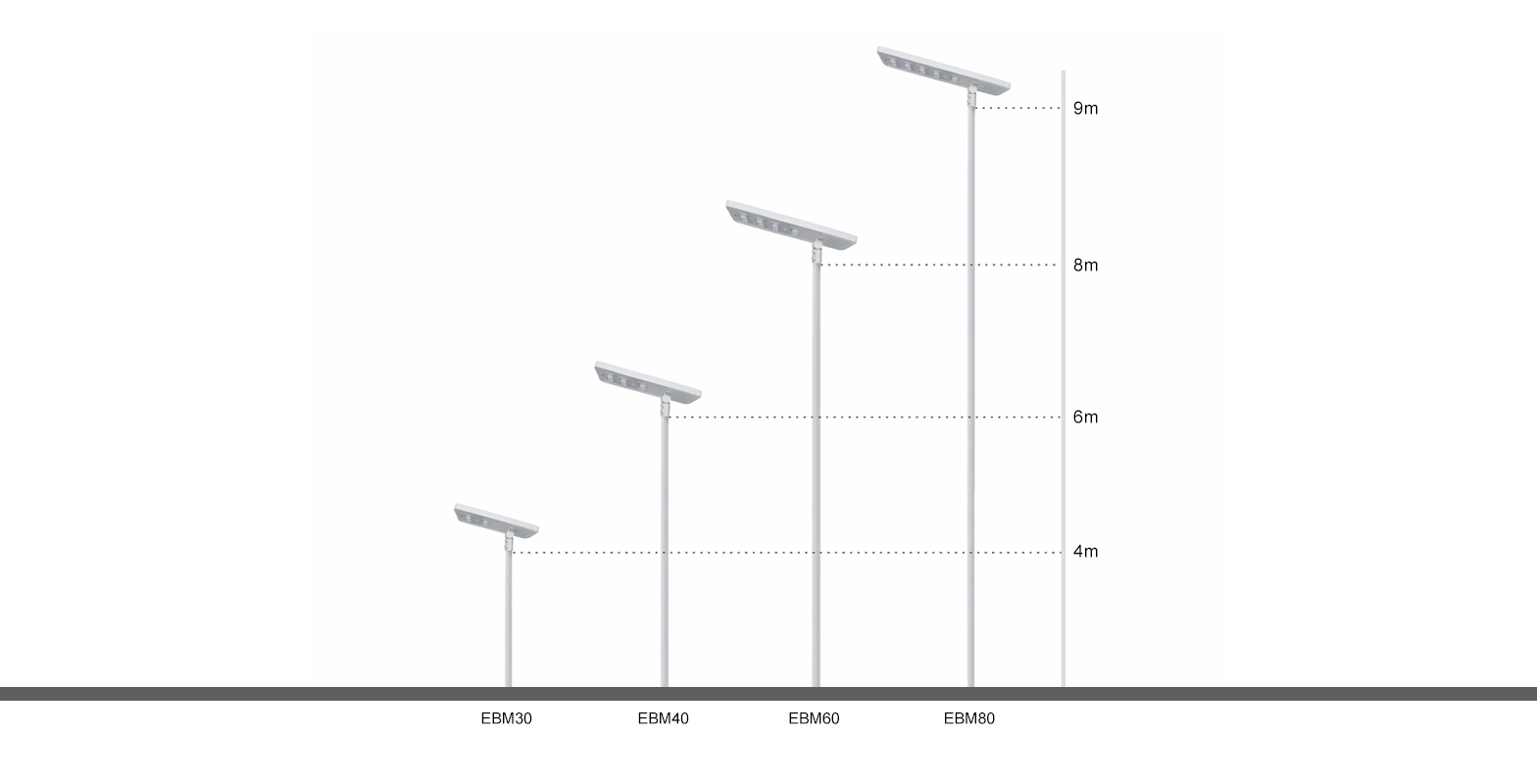

Installation Height | 4-5m | 4-6m | 6-8m | 7-9m |
lnstallation Distance | 15m | 20m | 25m | 25m |

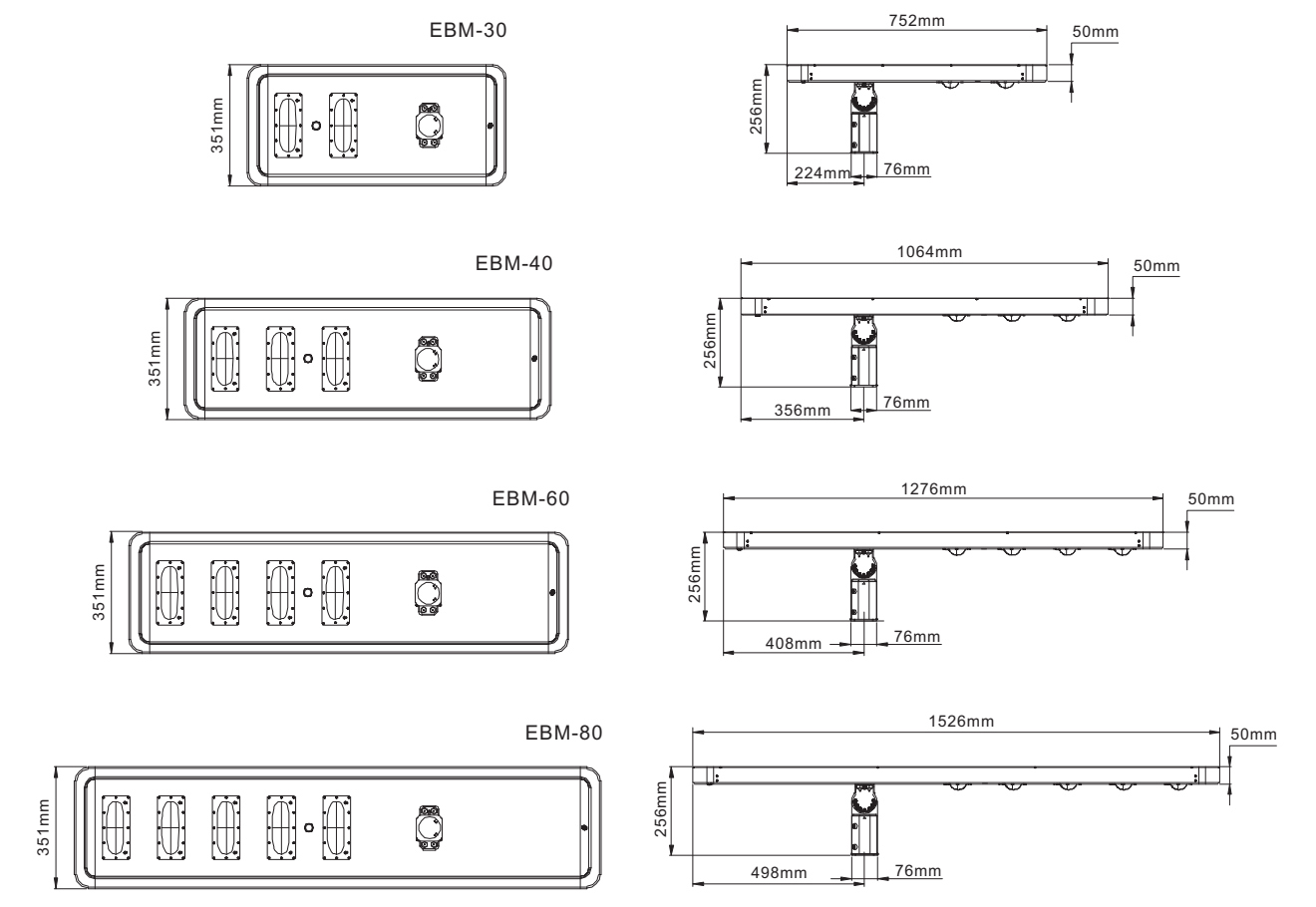

Lamp Body | 870×485×185mm | 1180×485×185mm | 1390×485×185mm | 1640×485×185mm |
N.W(KGS) | 11.0 | 15.0 | 17.5 | 20.5 |
G.W(KGS) | 13.0 | 17.5 | 19.5 | 23.5 |

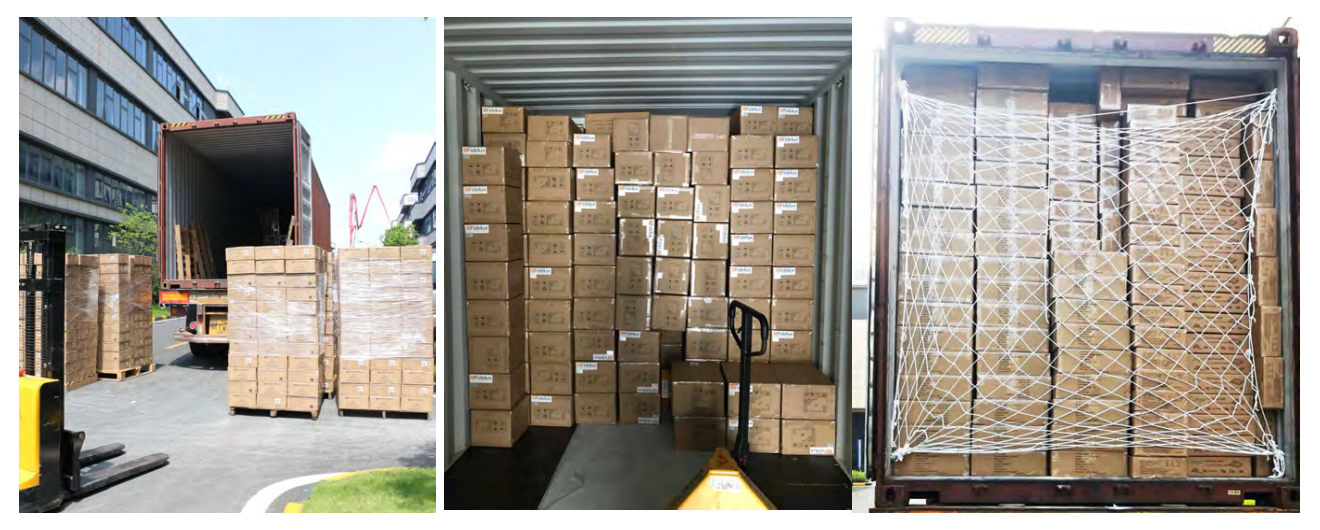

20GP | 360 sets | 240 sets | 224 sets | 216 sets |
40GP | 732 sets | 504 sets | 448 sets | 372 sets |
40HQ | 854 sets | 588 sets | 528 sets | 441 sets |
